[oXygen-user] Feature request: Validation for linked images in SVG paths

[Alex Jitianu]

Hello  Matt,

In Oxygen v15.0 we've added in the "Validate and check for Completeness"
dialog a new entry called "Additional schematron checks" in which you
can specify additional Schematron checks that should be be executed on
the topics. You can perform the check you've described using a
Schematron file with the following content:

<?xml version="1.0" encoding="UTF-8"?>
<schema
     xmlns="http://purl.oclc.org/dsdl/schematron"
     queryBinding="xslt2"
     xmlns:exslt="http://expath.org/ns/file">
     <ns uri="http://expath.org/ns/file" prefix="exslt"/>
     <pattern>
         <rule context="image[ends-with(@href, '.svg')]">
             <let name="svgDocument" value="document(@href)" />
             <assert
test="exslt:exists(resolve-uri($svgDocument//*:image/@*:href,
base-uri($svgDocument)))">
                 The image file from the following SVG doesn't exist:
<value-of select="base-uri($svgDocument)"/></assert>
         </rule>
     </pattern>
</schema>

Best regards,
Alex
--
Alex Jitianu
<oXygen/>  XML Editor, Schema Editor and XSLT Editor/Debugger
http://www.oxygenxml.com


On 29-Jul-13 9:38 PM, KAATMAN Matthew wrote:
>
> Hey Guys,
>
> This is a feature request that's not extremely crucial, but it would
> be helpful for us.
>
> I'm having our authors create SVG overlays and link to the background
> image (jpeg or png).
>
> Sometimes they accidentally link to an image that isn't in our
> repository path.
>
> Within the SVG, I'll end up with something like:
>
> <image width="1200" height="1807"
> xlink:href="../../../../../../../Users/Username/Pictures/PREVI
> PAV/PAV_printer_cover_open.jpg"  >
>
> When it should be:
>
> <image width="1200" height="1807"
> xlink:href="images/PAV_printer_cover_open.jpg"  >
>
> Although, the validate/check for completeness wouldn't catch this on
> their workstation as the image exists and is valid, it would find it
> quickly on mine since it's outside the path that gets checked in and
> I'd be missing that image.
>
> It doesn't seem like the OT throws any errors either. The only way I
> find out is when I'm viewing the PDF and notice that antenna house has
> substituted a broken image.
>

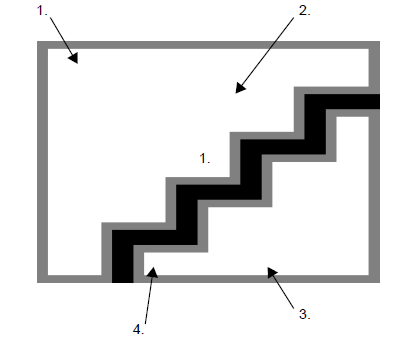

> Example:
>
> Thanks!
> Matt
>
