Working with Modular XSL Files

Oxygen offers full support for working with modular XSL files, providing module editing, validation, search and refactoring actions, and a module connections overview.

XSL Master Files

A Master File is usually the root of a tree of included or imported stylesheets. They are defined at Project level.

With the help of the Master Files support, Oxygen addresses issues such as module validation, editing a module using the Content Completion Assistant, and presenting the components from other modules in the Outline view.

XSL Master Files

XSL/XSLT Module Validation

When an XSL module is validated, Oxygen automatically identifies the XSL Master Files that include that module and validates the entire hierarchy of assembled modules.

XSL/XSLT Module Editing

Editing a module might be difficult if you don't know which templates, functions, or variables can be referenced from the current module. Fortunately, the Content Completion Assistant displays all the components that are valid in the current context, collected from the entire hierarchy of assembled modules.

Also, the Outline view displays all the components defined in the Master Files hierarchy, and you can easily spot the templates, functions, variables, or other components that are defined in the other modules.

Search and Refactoring Actions

Oxygen uses the Master Files support to improve the execution speed for several search and refactoring actions:

  • Rename Component
  • Search Declarations/References
  • Component Dependencies

Read more about the search and refactoring support here: XSL/XSLT Search and Refactoring.

Search and Refactor Support for XSL/XSLT

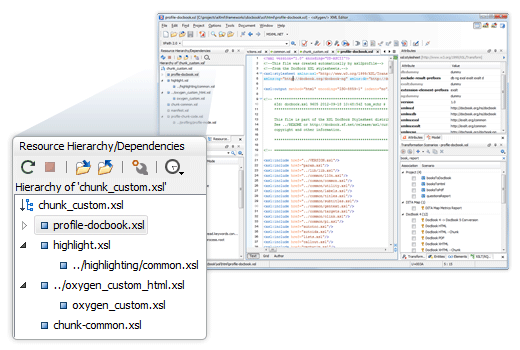

Module Connections Overview

To understand how the XSLT modules are connected, Oxygen provides a specialized view (Resource Hierarchy/Dependencies view). This allows you to visualize the relationship between XSLT resources.

XSL/XSLT Modules Connections Overview

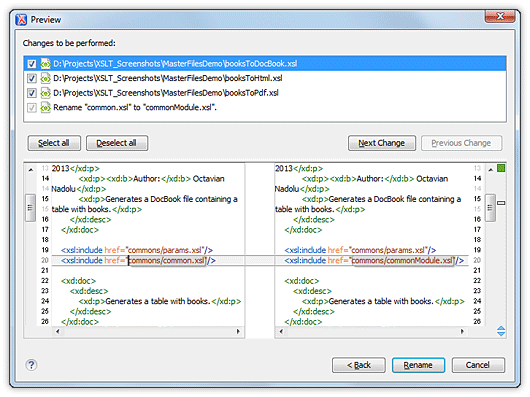

Rename or Move an XSL Module

Oxygen automatically updates all the references to a module when the module is renamed or moved in the Project or Resource Hierarchy/Dependencies view. A preview window displays the modifications that will be performed by Oxygen and you can choose to accept or reject them. Oxygen uses the Master Files support to define the scope for the rename or move operations invoked at Project level, improving the execution speed.

Preview the Rename Operation
