Schema documentation for ServiceOrder

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Properties

Source

Used by

Included schema ServiceOrder_r17.xsd

Namespace

urn:aseXML:r25

Annotations

This schema file is part of the aseXML schema set, and is subject to the terms and conditions that are detailed in the aseXML_r*.xsd schema file with which this file is used

Purpose - Define the structure of Service Order transactions to extend the aseXML

Properties

attribute form default:	unqualified
element form default:	unqualified

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

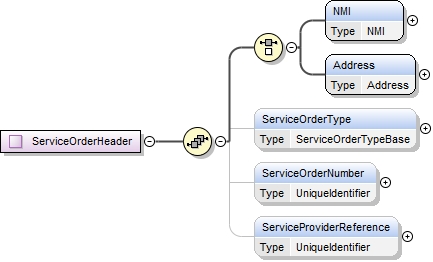

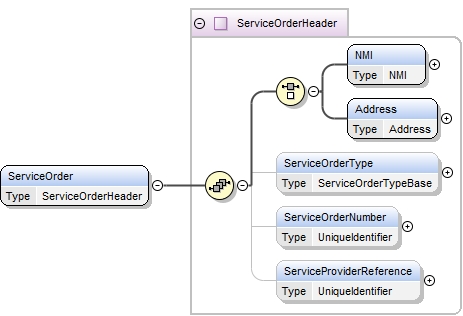

Element ServiceOrderRequest/ServiceOrder

Namespace

No namespace

Diagram

Type

ServiceOrderHeader

Properties

content:

complex

Model

(NMI | Address) , ServiceOrderType{0,1} , ServiceOrderNumber{0,1} , ServiceProviderReference{0,1}

Children

Address, NMI, ServiceOrderNumber, ServiceOrderType, ServiceProviderReference

Instance

<ServiceOrder>
  <NMI checksum="">{1,1}</NMI>
  <Address>{1,1}</Address>
  <ServiceOrderType>{0,1}</ServiceOrderType>
  <ServiceOrderNumber>{0,1}</ServiceOrderNumber>
  <ServiceProviderReference>{0,1}</ServiceProviderReference>
</ServiceOrder>

Source

<xsd:element name="ServiceOrder" type="ServiceOrderHeader"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element ServiceOrderHeader/NMI

Namespace

No namespace

Diagram

Type

NMI

Type hierarchy

xsd:string
- NMIBase
  - NMI

Properties

content:

complex

Attributes

QName	Type	Fixed	Default	Use	Annotation
checksum	NMIChecksum			optional

Source

<xsd:element name="NMI" type="NMI"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

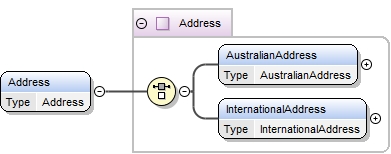

Element ServiceOrderHeader/Address

Namespace

No namespace

Diagram

Type

Address

Properties

content:

complex

Model

AustralianAddress | InternationalAddress

Children

AustralianAddress, InternationalAddress

Instance

<Address>
  <AustralianAddress>{1,1}</AustralianAddress>
  <InternationalAddress>{1,1}</InternationalAddress>
</Address>

Source

<xsd:element name="Address" type="Address"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element ServiceOrderHeader/ServiceOrderType

Namespace

No namespace

Diagram

Type

ServiceOrderTypeBase

Properties

content:	complex
minOccurs:	0

Source

<xsd:element name="ServiceOrderType" type="ServiceOrderTypeBase" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element ServiceOrderHeader/ServiceOrderNumber

Namespace

No namespace

Diagram

Type

UniqueIdentifier

Properties

content:	simple
minOccurs:	0

Facets

minLength	1
maxLength	36

Source

<xsd:element name="ServiceOrderNumber" type="UniqueIdentifier" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element ServiceOrderHeader/ServiceProviderReference

Namespace

No namespace

Diagram

Type

UniqueIdentifier

Properties

content:	simple
minOccurs:	0

Facets

minLength	1
maxLength	36

Source

<xsd:element name="ServiceProviderReference" type="UniqueIdentifier" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

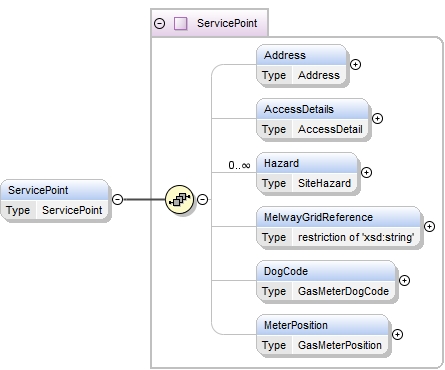

Element ServiceOrderRequest/ServicePoint

Namespace

No namespace

Diagram

Type

ServicePoint

Properties

content:	complex
minOccurs:	0

Model

Address{0,1} , AccessDetails{0,1} , Hazard* , MelwayGridReference{0,1} , DogCode{0,1} , MeterPosition{0,1}

Children

AccessDetails, Address, DogCode, Hazard, MelwayGridReference, MeterPosition

Instance

<ServicePoint>
  <Address>{0,1}</Address>
  <AccessDetails>{0,1}</AccessDetails>
  <Hazard>{0,unbounded}</Hazard>
  <MelwayGridReference>{0,1}</MelwayGridReference>
  <DogCode>{0,1}</DogCode>
  <MeterPosition>{0,1}</MeterPosition>
</ServicePoint>

Source

<xsd:element name="ServicePoint" type="ServicePoint" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

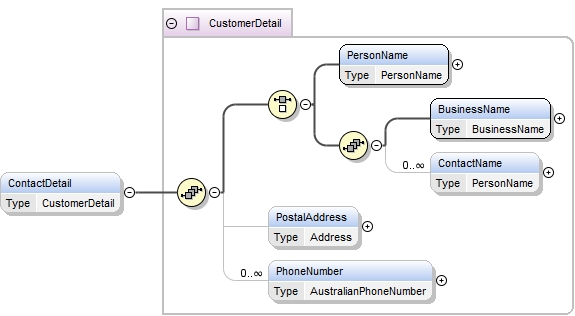

Element ServiceOrderRequest/ContactDetail

Namespace

No namespace

Diagram

Type

CustomerDetail

Properties

content:	complex
minOccurs:	0

Model

(PersonName | (BusinessName , ContactName*)) , PostalAddress{0,1} , PhoneNumber*

Children

BusinessName, ContactName, PersonName, PhoneNumber, PostalAddress

Instance

<ContactDetail>
  <PersonName nameType="LGL">{1,1}</PersonName>
  <PostalAddress>{0,1}</PostalAddress>
  <PhoneNumber serviceType="">{0,unbounded}</PhoneNumber>
</ContactDetail>

Source

<xsd:element name="ContactDetail" type="CustomerDetail" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element ServiceOrderRequest/CustomerDetail

Namespace

No namespace

Diagram

Type

CustomerDetail

Properties

content:	complex
minOccurs:	0

Model

(PersonName | (BusinessName , ContactName*)) , PostalAddress{0,1} , PhoneNumber*

Children

BusinessName, ContactName, PersonName, PhoneNumber, PostalAddress

Instance

<CustomerDetail>
  <PersonName nameType="LGL">{1,1}</PersonName>
  <PostalAddress>{0,1}</PostalAddress>
  <PhoneNumber serviceType="">{0,unbounded}</PhoneNumber>
</CustomerDetail>

Source

<xsd:element name="CustomerDetail" type="CustomerDetail" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

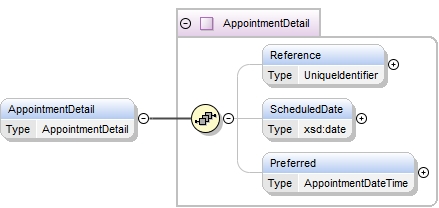

Element ServiceOrderRequest/AppointmentDetail

Namespace

No namespace

Diagram

Type

AppointmentDetail

Properties

content:	complex
minOccurs:	0

Model

Reference{0,1} , ScheduledDate{0,1} , Preferred{0,1}

Children

Preferred, Reference, ScheduledDate

Instance

<AppointmentDetail>
  <Reference>{0,1}</Reference>
  <ScheduledDate>{0,1}</ScheduledDate>
  <Preferred>{0,1}</Preferred>
</AppointmentDetail>

Source

<xsd:element name="AppointmentDetail" type="AppointmentDetail" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

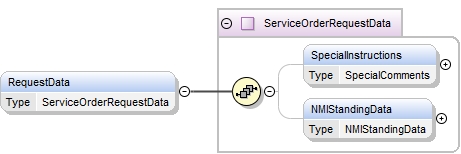

Element ServiceOrderRequest/RequestData

Namespace

No namespace

Diagram

Type

ServiceOrderRequestData

Properties

content:	complex
minOccurs:	0

Model

SpecialInstructions{0,1} , NMIStandingData{0,1}

Children

NMIStandingData, SpecialInstructions

Instance

<RequestData>
  <SpecialInstructions>{0,1}</SpecialInstructions>
  <NMIStandingData effectiveDateTime="">{0,1}</NMIStandingData>
</RequestData>

Source

<xsd:element name="RequestData" type="ServiceOrderRequestData" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

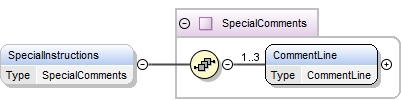

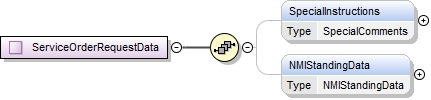

Element ServiceOrderRequestData/SpecialInstructions

Namespace

No namespace

Diagram

Type

SpecialComments

Properties

content:	complex
minOccurs:	0

Model

CommentLine{1,3}

Children

CommentLine

Instance

<SpecialInstructions>
  <CommentLine>{1,3}</CommentLine>
</SpecialInstructions>

Source

<xsd:element name="SpecialInstructions" type="SpecialComments" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

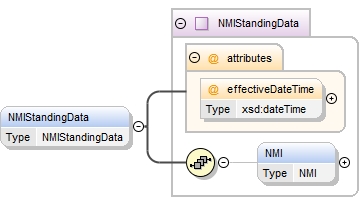

Element ServiceOrderRequestData/NMIStandingData

Namespace

No namespace

Diagram

Type

NMIStandingData

Properties

content:	complex
minOccurs:	0

Model

NMI{0,1}

Children

NMI

Instance

<NMIStandingData effectiveDateTime="">
  <NMI checksum="">{0,1}</NMI>
</NMIStandingData>

Attributes

QName	Type	Fixed	Default	Use	Annotation
effectiveDateTime	xsd:dateTime			optional

Source

<xsd:element name="NMIStandingData" type="NMIStandingData" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

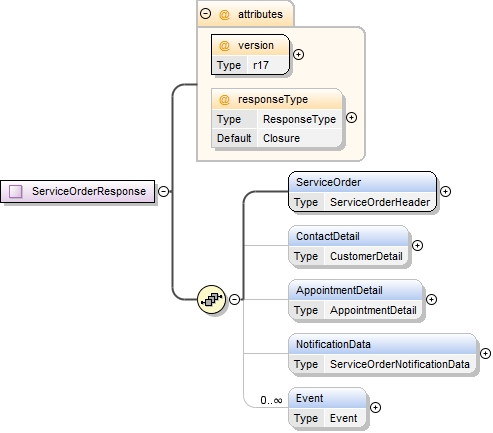

Element ServiceOrderResponse/ServiceOrder

Namespace

No namespace

Diagram

Type

ServiceOrderHeader

Properties

content:

complex

Model

(NMI | Address) , ServiceOrderType{0,1} , ServiceOrderNumber{0,1} , ServiceProviderReference{0,1}

Children

Address, NMI, ServiceOrderNumber, ServiceOrderType, ServiceProviderReference

Instance

<ServiceOrder>
  <NMI checksum="">{1,1}</NMI>
  <Address>{1,1}</Address>
  <ServiceOrderType>{0,1}</ServiceOrderType>
  <ServiceOrderNumber>{0,1}</ServiceOrderNumber>
  <ServiceProviderReference>{0,1}</ServiceProviderReference>
</ServiceOrder>

Source

<xsd:element name="ServiceOrder" type="ServiceOrderHeader"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element ServiceOrderResponse/ContactDetail

Namespace

No namespace

Diagram

Type

CustomerDetail

Properties

content:	complex
minOccurs:	0

Model

(PersonName | (BusinessName , ContactName*)) , PostalAddress{0,1} , PhoneNumber*

Children

BusinessName, ContactName, PersonName, PhoneNumber, PostalAddress

Instance

<ContactDetail>
  <PersonName nameType="LGL">{1,1}</PersonName>
  <PostalAddress>{0,1}</PostalAddress>
  <PhoneNumber serviceType="">{0,unbounded}</PhoneNumber>
</ContactDetail>

Source

<xsd:element name="ContactDetail" type="CustomerDetail" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element ServiceOrderResponse/AppointmentDetail

Namespace

No namespace

Diagram

Type

AppointmentDetail

Properties

content:	complex
minOccurs:	0

Model

Reference{0,1} , ScheduledDate{0,1} , Preferred{0,1}

Children

Preferred, Reference, ScheduledDate

Instance

<AppointmentDetail>
  <Reference>{0,1}</Reference>
  <ScheduledDate>{0,1}</ScheduledDate>
  <Preferred>{0,1}</Preferred>
</AppointmentDetail>

Source

<xsd:element name="AppointmentDetail" type="AppointmentDetail" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

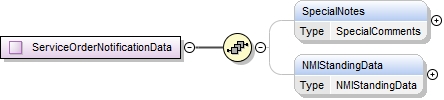

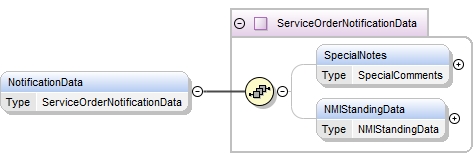

Element ServiceOrderResponse/NotificationData

Namespace

No namespace

Diagram

Type

ServiceOrderNotificationData

Properties

content:	complex
minOccurs:	0

Model

SpecialNotes{0,1} , NMIStandingData{0,1}

Children

NMIStandingData, SpecialNotes

Instance

<NotificationData>
  <SpecialNotes>{0,1}</SpecialNotes>
  <NMIStandingData effectiveDateTime="">{0,1}</NMIStandingData>
</NotificationData>

Source

<xsd:element name="NotificationData" type="ServiceOrderNotificationData" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

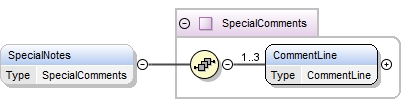

Element ServiceOrderNotificationData/SpecialNotes

Namespace

No namespace

Diagram

Type

SpecialComments

Properties

content:	complex
minOccurs:	0

Model

CommentLine{1,3}

Children

CommentLine

Instance

<SpecialNotes>
  <CommentLine>{1,3}</CommentLine>
</SpecialNotes>

Source

<xsd:element name="SpecialNotes" type="SpecialComments" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element ServiceOrderNotificationData/NMIStandingData

Namespace

No namespace

Diagram

Type

NMIStandingData

Properties

content:	complex
minOccurs:	0

Model

NMI{0,1}

Children

NMI

Instance

<NMIStandingData effectiveDateTime="">
  <NMI checksum="">{0,1}</NMI>
</NMIStandingData>

Attributes

QName	Type	Fixed	Default	Use	Annotation
effectiveDateTime	xsd:dateTime			optional

Source

<xsd:element name="NMIStandingData" type="NMIStandingData" minOccurs="0"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

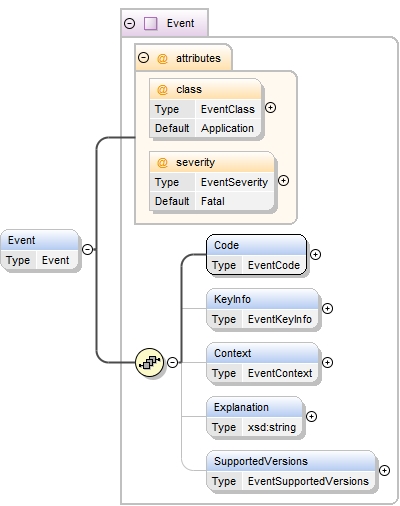

Element ServiceOrderResponse/Event

Namespace

No namespace

Diagram

Type

Event

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

Code , KeyInfo{0,1} , Context{0,1} , Explanation{0,1} , SupportedVersions{0,1}

Children

Code, Context, Explanation, KeyInfo, SupportedVersions

Instance

<Event class="Application" severity="Fatal">
  <Code description="">{1,1}</Code>
  <KeyInfo>{0,1}</KeyInfo>
  <Context>{0,1}</Context>
  <Explanation>{0,1}</Explanation>
  <SupportedVersions>{0,1}</SupportedVersions>
</Event>

Attributes

QName	Type	Fixed	Default	Use	Annotation
class	EventClass		Application	optional
severity	EventSeverity		Fatal	optional

Source

<xsd:element name="Event" type="Event" minOccurs="0" maxOccurs="unbounded"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Element FieldWorkNotification/CSVTimeExpiredMeters

Namespace

No namespace

Diagram

Type

CSVRequestFormat

Properties

content:

complex

Model

RecordCount , CSVData

Children

CSVData, RecordCount

Instance

<CSVTimeExpiredMeters>
  <RecordCount>{1,1}</RecordCount>
  <CSVData>{1,1}</CSVData>
</CSVTimeExpiredMeters>

Source

<xsd:element name="CSVTimeExpiredMeters" type="CSVRequestFormat"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

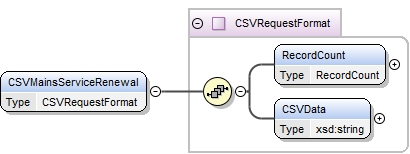

Element FieldWorkNotification/CSVMainsServiceRenewal

Namespace

No namespace

Diagram

Type

CSVRequestFormat

Properties

content:

complex

Model

RecordCount , CSVData

Children

CSVData, RecordCount

Instance

<CSVMainsServiceRenewal>
  <RecordCount>{1,1}</RecordCount>
  <CSVData>{1,1}</CSVData>
</CSVMainsServiceRenewal>

Source

<xsd:element name="CSVMainsServiceRenewal" type="CSVRequestFormat"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

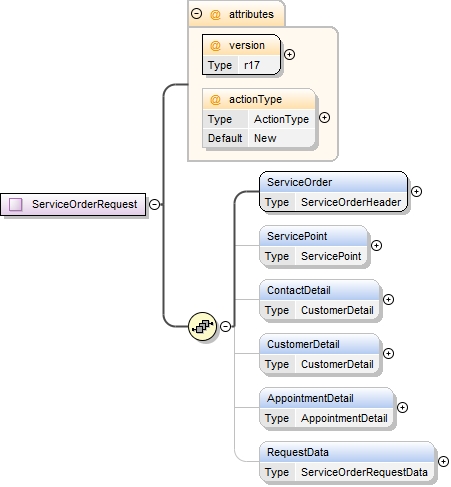

Complex Type ServiceOrderRequest

Namespace

urn:aseXML:r25

Annotations

Application - Service Order
TransactionExchange -
TransactionGroup - SORD
Priority - Medium
Purpose - Submit Service Order Request to the Service Provider

Diagram

Used by

Elements

Transaction/ServiceOrderRequest, Transaction/SpecialReadRequest

Model

ServiceOrder , ServicePoint{0,1} , ContactDetail{0,1} , CustomerDetail{0,1} , AppointmentDetail{0,1} , RequestData{0,1}

Children

AppointmentDetail, ContactDetail, CustomerDetail, RequestData, ServiceOrder, ServicePoint

Attributes

QName	Type	Fixed	Default	Use	Annotation
actionType	ActionType		New	optional
version	r17			required

Source

<xsd:complexType name="ServiceOrderRequest">
  <xsd:annotation>
    <xsd:documentation>Application - Service Order TransactionExchange - TransactionGroup - SORD Priority - Medium Purpose - Submit Service Order Request to the Service Provider</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ServiceOrder" type="ServiceOrderHeader"/>
    <xsd:element name="ServicePoint" type="ServicePoint" minOccurs="0"/>
    <xsd:element name="ContactDetail" type="CustomerDetail" minOccurs="0"/>
    <xsd:element name="CustomerDetail" type="CustomerDetail" minOccurs="0"/>
    <xsd:element name="AppointmentDetail" type="AppointmentDetail" minOccurs="0"/>
    <xsd:element name="RequestData" type="ServiceOrderRequestData" minOccurs="0"/>
  </xsd:sequence>
  <xsd:attribute name="version" type="r17" use="required"/>
  <xsd:attribute name="actionType" type="ActionType" default="New"/>
</xsd:complexType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Complex Type ServiceOrderHeader

Namespace

urn:aseXML:r25

Annotations

Schema - ServiceOrder

Diagram

Used by

Elements

ServiceOrderRequest/ServiceOrder, ServiceOrderResponse/ServiceOrder

Model

(NMI | Address) , ServiceOrderType{0,1} , ServiceOrderNumber{0,1} , ServiceProviderReference{0,1}

Children

Address, NMI, ServiceOrderNumber, ServiceOrderType, ServiceProviderReference

Source

<xsd:complexType name="ServiceOrderHeader">
  <xsd:annotation>
    <xsd:documentation>Schema - ServiceOrder</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:choice>
      <xsd:element name="NMI" type="NMI"/>
      <xsd:element name="Address" type="Address"/>
    </xsd:choice>
    <xsd:element name="ServiceOrderType" type="ServiceOrderTypeBase" minOccurs="0"/>
    <xsd:element name="ServiceOrderNumber" type="UniqueIdentifier" minOccurs="0"/>
    <xsd:element name="ServiceProviderReference" type="UniqueIdentifier" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Complex Type ServiceOrderTypeBase

Namespace

urn:aseXML:r25

Annotations

Base type for type substitution in instance documents using xsi:type construct.  Types currently based on this type are:
ServiceOrderTypeGas-Gas schema
ServiceOrderTypeElectricity- Electricity schema

Diagram

Properties

abstract:

true

Used by

Element	ServiceOrderHeader/ServiceOrderType
Complex Types	ElectricityServiceOrderType, GasServiceOrderType

Source

<xsd:complexType name="ServiceOrderTypeBase" abstract="true">
  <xsd:annotation>
    <xsd:documentation>Base type for type substitution in instance documents using xsi:type construct. Types currently based on this type are: ServiceOrderTypeGas-Gas schema ServiceOrderTypeElectricity- Electricity schema</xsd:documentation>
  </xsd:annotation>
</xsd:complexType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Complex Type ServiceOrderRequestData

Namespace

urn:aseXML:r25

Annotations

Schema - ServiceOrder

Diagram

Properties

abstract:

true

Used by

Element	ServiceOrderRequest/RequestData
Complex Types	ElectricityServiceOrderDetails, GasServiceOrderDetails

Model

SpecialInstructions{0,1} , NMIStandingData{0,1}

Children

NMIStandingData, SpecialInstructions

Source

<xsd:complexType name="ServiceOrderRequestData" abstract="true">
  <xsd:annotation>
    <xsd:documentation>Schema - ServiceOrder</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="SpecialInstructions" type="SpecialComments" minOccurs="0"/>
    <xsd:element name="NMIStandingData" type="NMIStandingData" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Simple Type ActionType

Namespace

urn:aseXML:r25

Annotations

Purpose - Defines a list of valid update statuses

Diagram

Type

restriction of xsd:string

Facets

enumeration

New, Update, Cancel, Replace

Used by

Attribute

ServiceOrderRequest/@actionType

Source

<xsd:simpleType name="ActionType">
  <xsd:annotation>
    <xsd:documentation>Purpose - Defines a list of valid update statuses</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="New"/>
    <xsd:enumeration value="Update"/>
    <xsd:enumeration value="Cancel"/>
    <xsd:enumeration value="Replace"/>
  </xsd:restriction>
</xsd:simpleType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Complex Type ServiceOrderResponse

Namespace

urn:aseXML:r25

Annotations

Application - Service Order
TransactionExchange -
TransactionGroup - SORD
Priority - Medium
Purpose - Submit Service Order completion details to the Retailer

Diagram

Used by

Elements

Transaction/ServiceOrderResponse, Transaction/SpecialReadResponse

Model

ServiceOrder , ContactDetail{0,1} , AppointmentDetail{0,1} , NotificationData{0,1} , Event*

Children

AppointmentDetail, ContactDetail, Event, NotificationData, ServiceOrder

Attributes

QName	Type	Fixed	Default	Use	Annotation
responseType	ResponseType		Closure	optional
version	r17			required

Source

<xsd:complexType name="ServiceOrderResponse">
  <xsd:annotation>
    <xsd:documentation>Application - Service Order TransactionExchange - TransactionGroup - SORD Priority - Medium Purpose - Submit Service Order completion details to the Retailer</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="ServiceOrder" type="ServiceOrderHeader"/>
    <xsd:element name="ContactDetail" type="CustomerDetail" minOccurs="0"/>
    <xsd:element name="AppointmentDetail" type="AppointmentDetail" minOccurs="0"/>
    <xsd:element name="NotificationData" type="ServiceOrderNotificationData" minOccurs="0"/>
    <xsd:element name="Event" type="Event" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
  <xsd:attribute name="version" type="r17" use="required"/>
  <xsd:attribute name="responseType" type="ResponseType" default="Closure"/>
</xsd:complexType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Complex Type ServiceOrderNotificationData

Namespace

urn:aseXML:r25

Annotations

Schema - ServiceOrder

Diagram

Properties

abstract:

true

Used by

Element	ServiceOrderResponse/NotificationData
Complex Types	ElectricityServiceOrderNotificationData, GasServiceOrderNotificationData

Model

SpecialNotes{0,1} , NMIStandingData{0,1}

Children

NMIStandingData, SpecialNotes

Source

<xsd:complexType name="ServiceOrderNotificationData" abstract="true">
  <xsd:annotation>
    <xsd:documentation>Schema - ServiceOrder</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element name="SpecialNotes" type="SpecialComments" minOccurs="0"/>
    <xsd:element name="NMIStandingData" type="NMIStandingData" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Simple Type ResponseType

Namespace

urn:aseXML:r25

Diagram

Type

restriction of xsd:string

Facets

enumeration

Initial, Closure, Appointment

Used by

Attribute

ServiceOrderResponse/@responseType

Source

<xsd:simpleType name="ResponseType">
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Initial"/>
    <xsd:enumeration value="Closure"/>
    <xsd:enumeration value="Appointment"/>
  </xsd:restriction>
</xsd:simpleType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

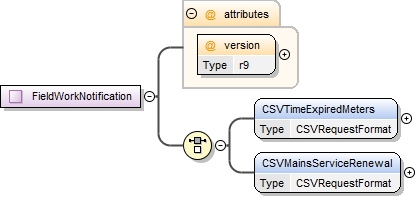

Complex Type FieldWorkNotification

Namespace

urn:aseXML:r25

Annotations

Schema - ServiceOrder

Diagram

Used by

Element

Transaction/FieldWorkNotification

Model

CSVTimeExpiredMeters | CSVMainsServiceRenewal

Children

CSVMainsServiceRenewal, CSVTimeExpiredMeters

Attributes

QName	Type	Fixed	Default	Use	Annotation
version	r9			required

Source

<xsd:complexType name="FieldWorkNotification">
  <xsd:annotation>
    <xsd:documentation>Schema - ServiceOrder</xsd:documentation>
  </xsd:annotation>
  <xsd:choice>
    <xsd:element name="CSVTimeExpiredMeters" type="CSVRequestFormat"/>
    <xsd:element name="CSVMainsServiceRenewal" type="CSVRequestFormat"/>
  </xsd:choice>
  <xsd:attribute name="version" type="r9" use="required"/>
</xsd:complexType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Simple Type SpecialReadReasonCode

Namespace

urn:aseXML:r25

Annotations

Purpose - Defines a list of valid Special Read reason codes

Diagram

Type

restriction of xsd:string

Facets

enumeration

Account Investigation, Final Read, Final Read for Disconnection on Non-Payment, Final and Opening Read, Opening Read, Change of Retailer, Change of Customer, Check Read, Other, Sticker Removed, Final Read Stickered, Read Following Disconnection for Non-Payment

Used by

Element

GasServiceOrderType/SpecialReadReasonCode

Source

<xsd:simpleType name="SpecialReadReasonCode">
  <xsd:annotation>
    <xsd:documentation>Purpose - Defines a list of valid Special Read reason codes</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Account Investigation"/>
    <xsd:enumeration value="Final Read"/>
    <xsd:enumeration value="Final Read for Disconnection on Non-Payment"/>
    <xsd:enumeration value="Final and Opening Read"/>
    <xsd:enumeration value="Opening Read"/>
    <xsd:enumeration value="Change of Retailer"/>
    <xsd:enumeration value="Change of Customer"/>
    <xsd:enumeration value="Check Read"/>
    <xsd:enumeration value="Other"/>
    <xsd:enumeration value="Sticker Removed"/>
    <xsd:enumeration value="Final Read Stickered"/>
    <xsd:enumeration value="Read Following Disconnection for Non-Payment"/>
  </xsd:restriction>
</xsd:simpleType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Simple Type ServiceOrderStatus

Namespace

urn:aseXML:r25

Annotations

Purpose - Defines a list of valid service order status codes

Diagram

Type

restriction of xsd:string

Facets

enumeration

Completed, Partially Completed, Not Completed

Used by

Element

ElectricityServiceOrderNotificationData/ServiceOrderStatus

Source

<xsd:simpleType name="ServiceOrderStatus">
  <xsd:annotation>
    <xsd:documentation>Purpose - Defines a list of valid service order status codes</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Completed"/>
    <xsd:enumeration value="Partially Completed"/>
    <xsd:enumeration value="Not Completed"/>
  </xsd:restriction>
</xsd:simpleType>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Attribute ServiceOrderRequest/@version

Namespace

No namespace

Type

r17

Type hierarchy

xsd:string
- ReleaseIdentifier
  - r17

Properties

use:	required

Facets

enumeration	r17
pattern	r[0-9]\|r[0-9]_[a-z][0-9]*

Used by

Complex Type

ServiceOrderRequest

Source

<xsd:attribute name="version" type="r17" use="required"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Attribute ServiceOrderRequest/@actionType

Namespace

No namespace

Type

ActionType

Properties

default:

New

Facets

enumeration

New, Update, Cancel, Replace

Used by

Complex Type

ServiceOrderRequest

Source

<xsd:attribute name="actionType" type="ActionType" default="New"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Attribute ServiceOrderResponse/@version

Namespace

No namespace

Type

r17

Type hierarchy

xsd:string
- ReleaseIdentifier
  - r17

Properties

use:	required

Facets

enumeration	r17
pattern	r[0-9]\|r[0-9]_[a-z][0-9]*

Used by

Complex Type

ServiceOrderResponse

Source

<xsd:attribute name="version" type="r17" use="required"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Attribute ServiceOrderResponse/@responseType

Namespace

No namespace

Type

ResponseType

Properties

default:

Closure

Facets

enumeration

Initial, Closure, Appointment

Used by

Complex Type

ServiceOrderResponse

Source

<xsd:attribute name="responseType" type="ResponseType" default="Closure"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd

Attribute FieldWorkNotification/@version

Namespace

No namespace

Type

Type hierarchy

xsd:string
- ReleaseIdentifier
  - r9

Properties

use:	required

Facets

enumeration	r9
pattern	r[0-9]\|r[0-9]_[a-z][0-9]*

Used by

Complex Type

FieldWorkNotification

Source

<xsd:attribute name="version" type="r9" use="required"/>

Schema location

file:/C:/Users/mihai/Desktop/asexml_r25/ServiceOrder_r17.xsd
