Included schema sportsml-specific-rugby.xsd
Namespace http://iptc.org/std/SportsML/2008-04-01/
Properties
attribute form default unqualified
element form default unqualified
version 2.0
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

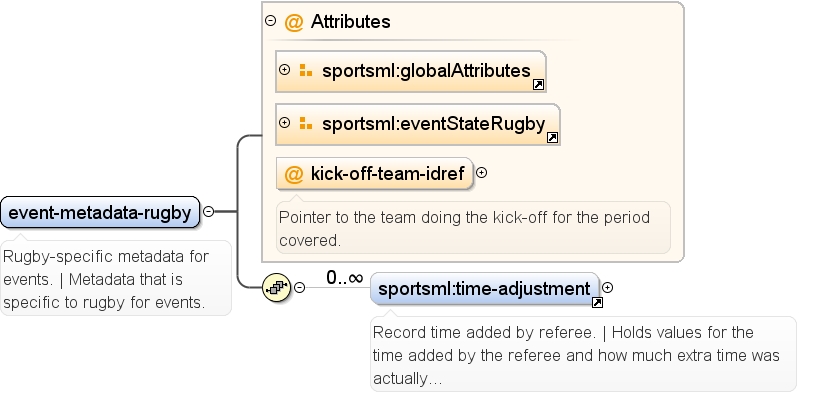

Element sportsml:event-metadata-rugby
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Rugby-specific metadata for events. | Metadata that is specific to rugby for events.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#event-metadata-rugby_kick-off-team-idref sportsml-specific-soccer_xsd.tmp#time-adjustment
Properties
content complex
Used by
Model
Children sportsml:time-adjustment
Instance
<sportsml:event-metadata-rugby id="" kick-off-team-idref="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:time-adjustment id="" minutes-elapsed="" period-extra-time-added="" period-extra-time-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="">{0,unbounded}</sportsml:time-adjustment>
</sportsml:event-metadata-rugby>
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
kick-off-team-idref IDREF optional
Pointer to the team doing the kick-off for the period covered.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
Source
<element name="event-metadata-rugby">
  <annotation>
    <documentation>Rugby-specific metadata for events. | Metadata that is specific to rugby for events.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:time-adjustment" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="kick-off-team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>Pointer to the team doing the kick-off for the period covered.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Element sportsml:event-actions-rugby
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Action specific to rugby. | Actions that are specific to rugby.

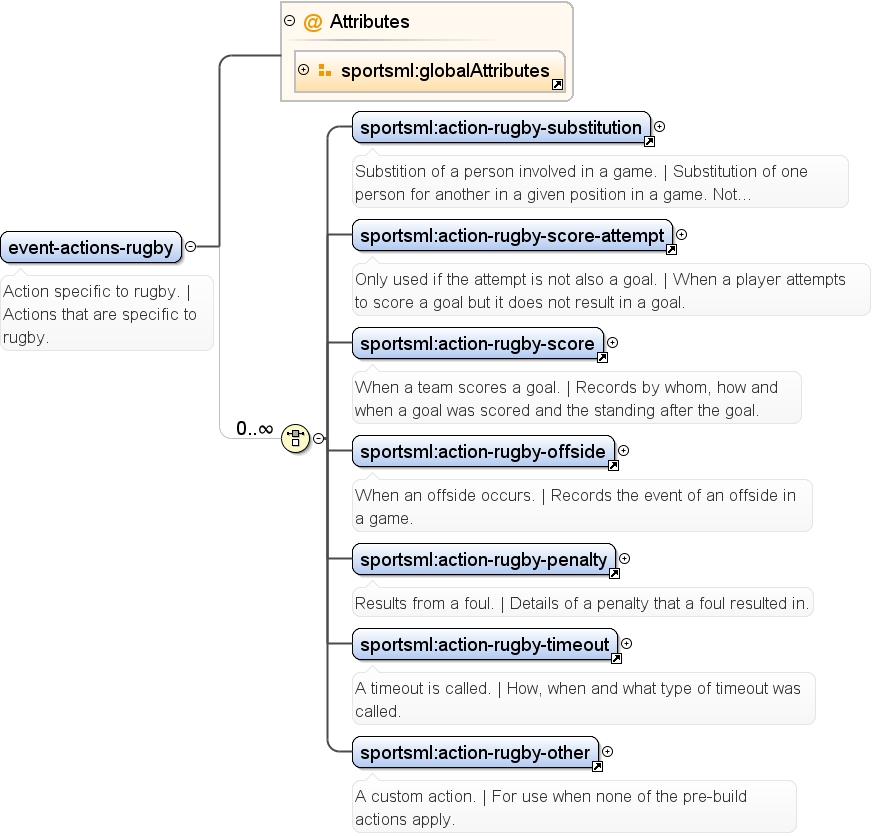

Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#action-rugby-substitution sportsml-specific-rugby_xsd.tmp#action-rugby-score-attempt sportsml-specific-rugby_xsd.tmp#action-rugby-score sportsml-specific-rugby_xsd.tmp#action-rugby-offside sportsml-specific-rugby_xsd.tmp#action-rugby-penalty sportsml-specific-rugby_xsd.tmp#action-rugby-timeout sportsml-specific-rugby_xsd.tmp#action-rugby-other
Properties
content complex
Used by
Model
Children sportsml:action-rugby-offside, sportsml:action-rugby-other, sportsml:action-rugby-penalty, sportsml:action-rugby-score, sportsml:action-rugby-score-attempt, sportsml:action-rugby-substitution, sportsml:action-rugby-timeout
Instance
<sportsml:event-actions-rugby id="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:action-rugby-substitution comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" person-original-idref="" person-original-position="" person-replacing-idref="" person-replacing-position="" person-type="" substitution-reason="" substitution-type="" team-idref="">{1,1}</sportsml:action-rugby-substitution>
  <sportsml:action-rugby-score-attempt comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" score-attempt-method="" score-attempt-result="" score-attempt-type="" team-idref="">{1,1}</sportsml:action-rugby-score-attempt>
  <sportsml:action-rugby-score comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" player-idref="" points="" score-attempt-method="" score-attempt-type="" score-team="" score-team-opposing="" team-idref="">{1,1}</sportsml:action-rugby-score>
  <sportsml:action-rugby-offside comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" player-offside-idref="" player-passing-idref="" team-idref="">{1,1}</sportsml:action-rugby-offside>

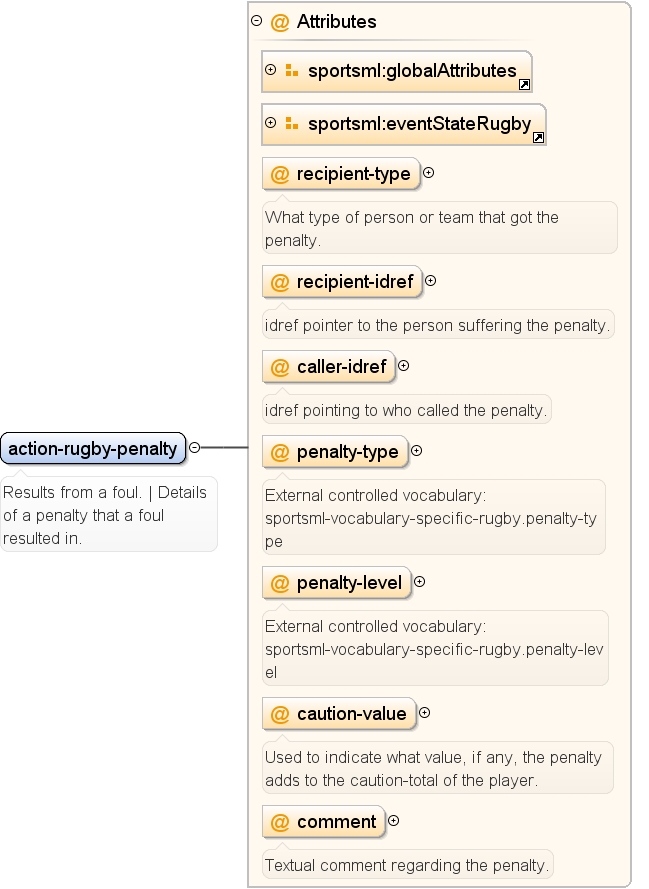

  <sportsml:action-rugby-penalty caller-idref="" caution-value="" comment="" id="" minutes-elapsed="" penalty-level="" penalty-type="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" recipient-idref="" recipient-type="">{1,1}</sportsml:action-rugby-penalty>

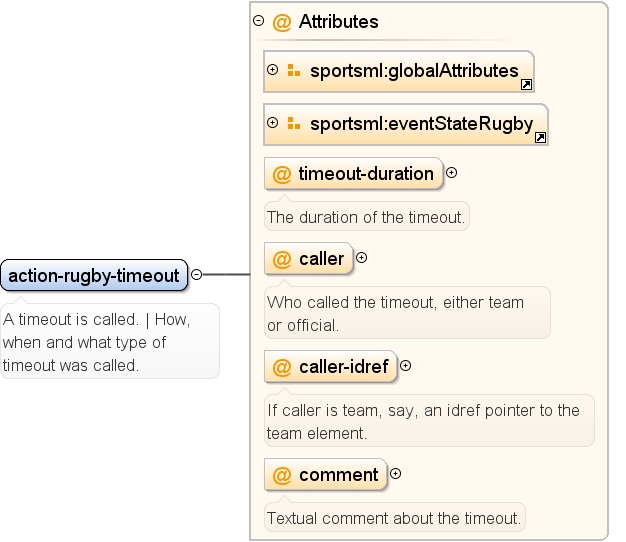

  <sportsml:action-rugby-timeout caller="" caller-idref="" comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="" timeout-duration="">{1,1}</sportsml:action-rugby-timeout>
  <sportsml:action-rugby-other action-source="" action-type="" comment="" id="" minutes-elapsed="" period-minute-elapsed="" period-time-elapsed="" period-time-remaining="" period-value="">{1,1}</sportsml:action-rugby-other>
</sportsml:event-actions-rugby>
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="event-actions-rugby">
  <annotation>
    <documentation>Action specific to rugby. | Actions that are specific to rugby.</documentation>
  </annotation>
  <complexType>
    <choice minOccurs="0" maxOccurs="unbounded">
      <element ref="sportsml:action-rugby-substitution"/>
      <element ref="sportsml:action-rugby-score-attempt"/>
      <element ref="sportsml:action-rugby-score"/>
      <element ref="sportsml:action-rugby-offside"/>
      <element ref="sportsml:action-rugby-penalty"/>
      <element ref="sportsml:action-rugby-timeout"/>
      <element ref="sportsml:action-rugby-other"/>
    </choice>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

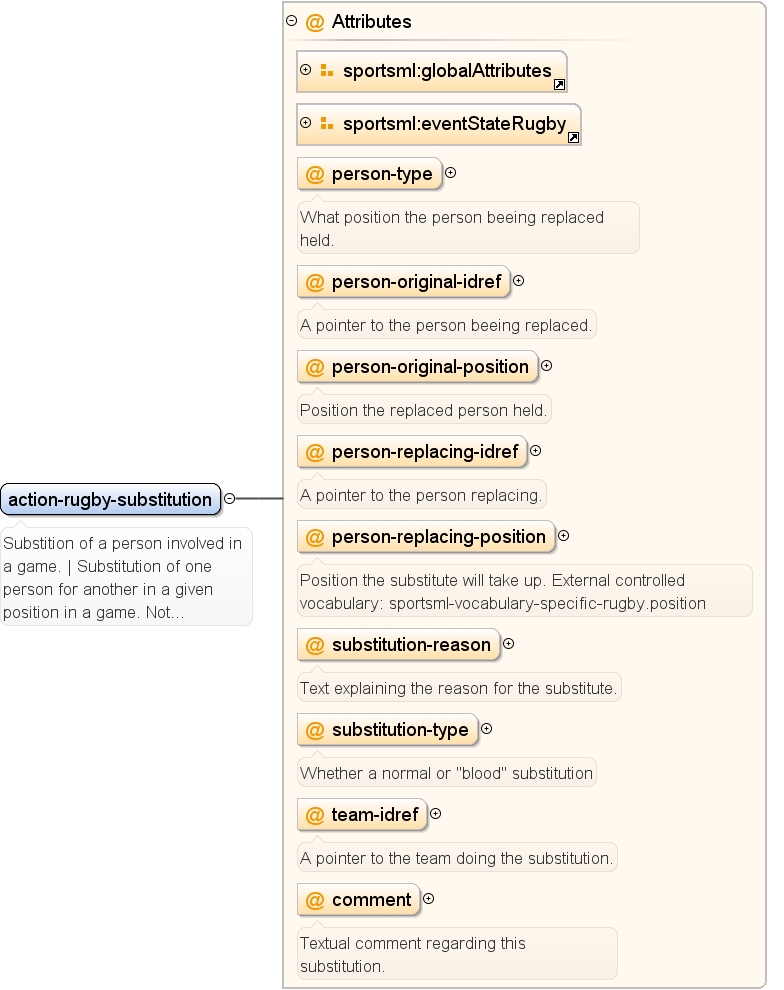

Element sportsml:action-rugby-substitution
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Substition of a person involved in a game. | Substitution of one person for another in a given position in a game. Not limited to players.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_person-type sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_person-original-idref sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_person-original-position sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_person-replacing-idref sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_person-replacing-position sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_substitution-reason sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_substitution-type sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_team-idref sportsml-specific-rugby_xsd.tmp#action-rugby-substitution_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
Textual comment regarding this substitution.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
person-original-idref IDREF optional
A pointer to the person beeing replaced.
person-original-position sportsml:position.Rugby optional
Position the replaced person held.
person-replacing-idref IDREF optional
A pointer to the person replacing.
person-replacing-position string optional
Position the substitute will take up.  External controlled vocabulary: sportsml-vocabulary-specific-rugby.position
person-type restriction of string optional
What position the person beeing replaced held.
substitution-reason string optional
Text explaining the reason for the substitute.
substitution-type string optional
Whether a normal or "blood" substitution
team-idref IDREF optional
A pointer to the team doing the substitution.
Source
<element name="action-rugby-substitution">
  <annotation>
    <documentation>Substition of a person involved in a game. | Substitution of one person for another in a given position in a game. Not limited to players.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="person-type" use="optional">
      <annotation>
        <documentation>What position the person beeing replaced held.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="player"/>
          <enumeration value="associate"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="person-original-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the person beeing replaced.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-original-position" type="sportsml:position.Rugby" use="optional">
      <annotation>
        <documentation>Position the replaced person held.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the person replacing.</documentation>
      </annotation>
    </attribute>
    <attribute name="person-replacing-position" type="string" use="optional">
      <annotation>
        <documentation>Position the substitute will take up. External controlled vocabulary: sportsml-vocabulary-specific-rugby.position</documentation>
      </annotation>
    </attribute>
    <attribute name="substitution-reason" type="string" use="optional">
      <annotation>
        <documentation>Text explaining the reason for the substitute.</documentation>
      </annotation>
    </attribute>
    <attribute name="substitution-type" type="string" use="optional">
      <annotation>
        <documentation>Whether a normal or "blood" substitution</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>A pointer to the team doing the substitution.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding this substitution.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

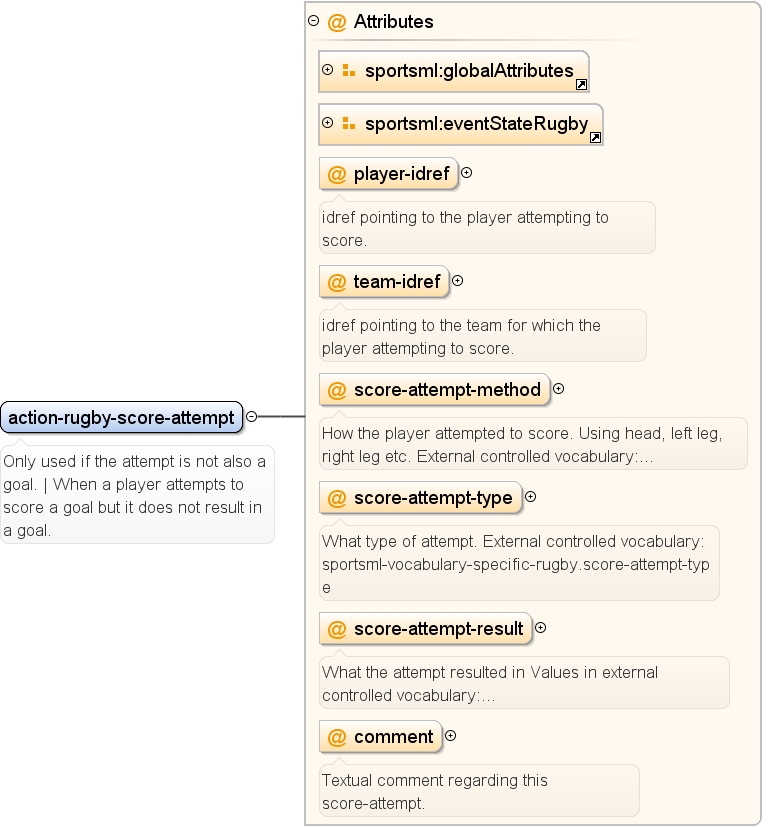

Element sportsml:action-rugby-score-attempt
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Only used if the attempt is not also a goal. | When a player attempts to score a goal but it does not result in a goal.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#action-rugby-score-attempt_player-idref sportsml-specific-rugby_xsd.tmp#action-rugby-score-attempt_team-idref sportsml-specific-rugby_xsd.tmp#action-rugby-score-attempt_score-attempt-method sportsml-specific-rugby_xsd.tmp#action-rugby-score-attempt_score-attempt-type sportsml-specific-rugby_xsd.tmp#action-rugby-score-attempt_score-attempt-result sportsml-specific-rugby_xsd.tmp#action-rugby-score-attempt_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
Textual comment regarding this score-attempt.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
player-idref IDREF optional
idref pointing to the player attempting to score.
score-attempt-method string optional
How the player attempted to score. Using head, left leg, right leg etc. External controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-method
score-attempt-result string optional
What the attempt resulted in Values in external controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-result
score-attempt-type string optional
What type of attempt. External controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-type
team-idref IDREF optional
idref pointing to the team for which the player attempting to score.
Source
<element name="action-rugby-score-attempt">
  <annotation>
    <documentation>Only used if the attempt is not also a goal. | When a player attempts to score a goal but it does not result in a goal.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player attempting to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team for which the player attempting to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-method" type="string" use="optional">
      <annotation>
        <documentation>How the player attempted to score. Using head, left leg, right leg etc. External controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-method</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="string" use="optional">
      <annotation>
        <documentation>What type of attempt. External controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-type</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-result" type="string" use="optional">
      <annotation>
        <documentation>What the attempt resulted in Values in external controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-result</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding this score-attempt.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

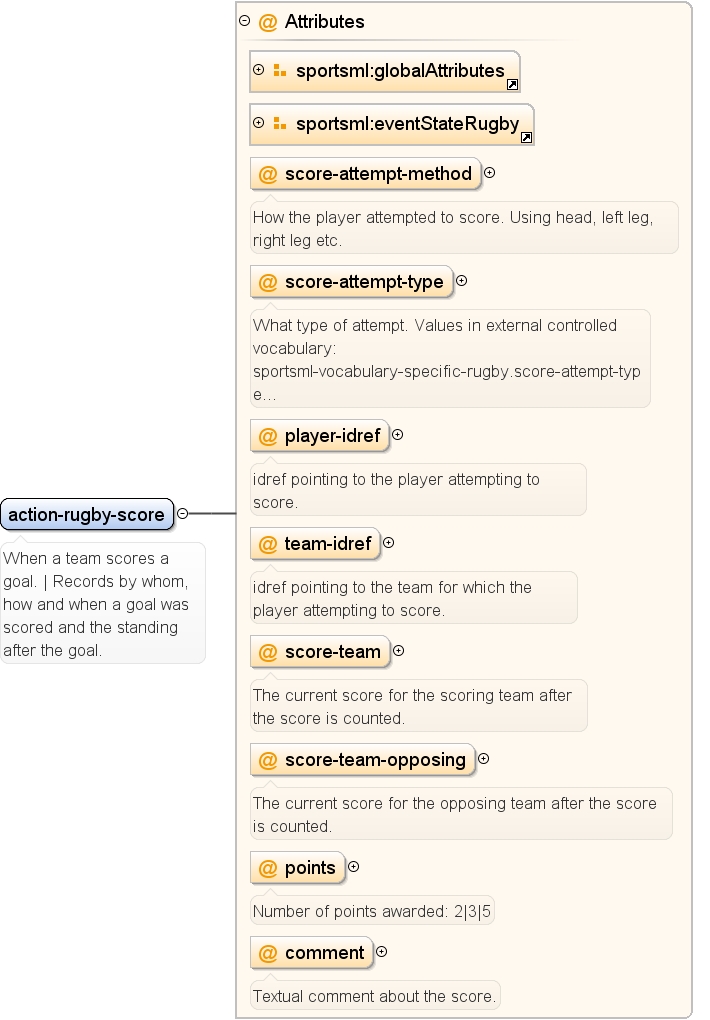

Element sportsml:action-rugby-score
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
When a team scores a goal. | Records by whom, how and when a goal was scored and the standing after the goal.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#action-rugby-score_score-attempt-method sportsml-specific-rugby_xsd.tmp#action-rugby-score_score-attempt-type sportsml-specific-rugby_xsd.tmp#action-rugby-score_player-idref sportsml-specific-rugby_xsd.tmp#action-rugby-score_team-idref sportsml-specific-rugby_xsd.tmp#action-rugby-score_score-team sportsml-specific-rugby_xsd.tmp#action-rugby-score_score-team-opposing sportsml-specific-rugby_xsd.tmp#action-rugby-score_points sportsml-specific-rugby_xsd.tmp#action-rugby-score_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
Textual comment about the score.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
player-idref IDREF optional
idref pointing to the player attempting to score.
points string optional
Number of points awarded: 2|3|5
score-attempt-method string optional
How the player attempted to score. Using head, left leg, right leg etc.
score-attempt-type string optional
What type of attempt. Values in external controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-type (Note that the same attribute names are used as in score-attempt to avoid the need for duplicated vocabularies.)
score-team string optional
The current score for the scoring team after the score is counted.
score-team-opposing string optional
The current score for the opposing team after the score is counted.
team-idref IDREF optional
idref pointing to the team for which the player attempting to score.
Source
<element name="action-rugby-score">
  <annotation>
    <documentation>When a team scores a goal. | Records by whom, how and when a goal was scored and the standing after the goal.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="score-attempt-method" type="string" use="optional">
      <annotation>
        <documentation>How the player attempted to score. Using head, left leg, right leg etc.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-attempt-type" type="string" use="optional">
      <annotation>
        <documentation>What type of attempt. Values in external controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-type (Note that the same attribute names are used as in score-attempt to avoid the need for duplicated vocabularies.)</documentation>
      </annotation>
    </attribute>
    <attribute name="player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player attempting to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team for which the player attempting to score.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team" type="string" use="optional">
      <annotation>
        <documentation>The current score for the scoring team after the score is counted.</documentation>
      </annotation>
    </attribute>
    <attribute name="score-team-opposing" type="string" use="optional">
      <annotation>
        <documentation>The current score for the opposing team after the score is counted.</documentation>
      </annotation>
    </attribute>
    <attribute name="points" type="string" use="optional">
      <annotation>
        <documentation>Number of points awarded: 2|3|5</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the score.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Element sportsml:action-rugby-offside
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
When an offside occurs. | Records the event of an offside in a game.

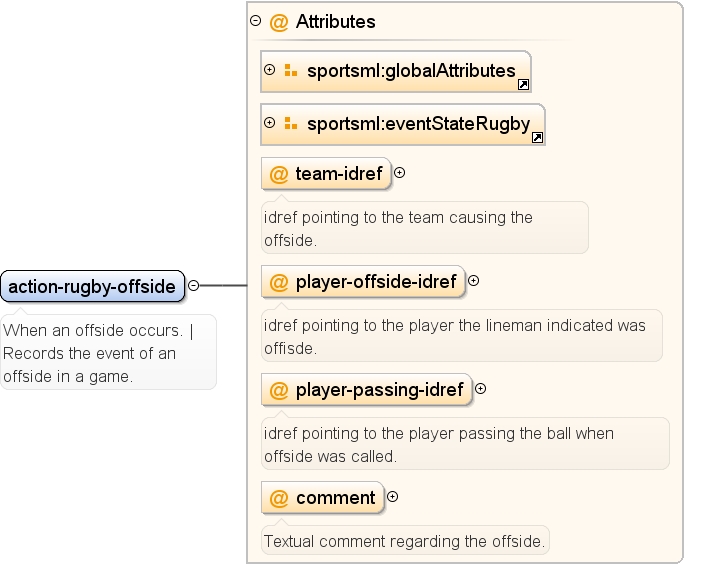

Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#action-rugby-offside_team-idref sportsml-specific-rugby_xsd.tmp#action-rugby-offside_player-offside-idref sportsml-specific-rugby_xsd.tmp#action-rugby-offside_player-passing-idref sportsml-specific-rugby_xsd.tmp#action-rugby-offside_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
comment string optional
Textual comment regarding the offside.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
player-offside-idref IDREF optional
idref pointing to the player the lineman indicated was offisde.
player-passing-idref IDREF optional
idref pointing to the player passing the ball when offside was called.
team-idref IDREF optional
idref pointing to the team causing the offside.
Source
<element name="action-rugby-offside">
  <annotation>
    <documentation>When an offside occurs. | Records the event of an offside in a game.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team causing the offside.</documentation>
      </annotation>
    </attribute>
    <attribute name="player-offside-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player the lineman indicated was offisde.</documentation>
      </annotation>
    </attribute>
    <attribute name="player-passing-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player passing the ball when offside was called.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding the offside.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Element sportsml:action-rugby-penalty
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Results from a foul. | Details of a penalty that a foul resulted in.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#action-rugby-penalty_recipient-type sportsml-specific-rugby_xsd.tmp#action-rugby-penalty_recipient-idref sportsml-specific-rugby_xsd.tmp#action-rugby-penalty_caller-idref sportsml-specific-rugby_xsd.tmp#action-rugby-penalty_penalty-type sportsml-specific-rugby_xsd.tmp#action-rugby-penalty_penalty-level sportsml-specific-rugby_xsd.tmp#action-rugby-penalty_caution-value sportsml-specific-rugby_xsd.tmp#action-rugby-penalty_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
caller-idref string optional
idref pointing to who called the penalty.
caution-value string optional
Used to indicate what value, if any, the penalty adds to the caution-total of the player.
comment string optional
Textual comment regarding the penalty.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
penalty-level string optional
External controlled vocabulary: sportsml-vocabulary-specific-rugby.penalty-level
penalty-type string optional
External controlled vocabulary: sportsml-vocabulary-specific-rugby.penalty-type
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
recipient-idref IDREF optional
idref pointer to the person suffering the penalty.
recipient-type restriction of string optional
What type of person or team that got the penalty.
Source
<element name="action-rugby-penalty">
  <annotation>
    <documentation>Results from a foul. | Details of a penalty that a foul resulted in.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="recipient-type" use="optional">
      <annotation>
        <documentation>What type of person or team that got the penalty.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="player"/>
          <enumeration value="auxilliary"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="recipient-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointer to the person suffering the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller-idref" type="string" use="optional">
      <annotation>
        <documentation>idref pointing to who called the penalty.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-type" type="string" use="optional">
      <annotation>
        <documentation>External controlled vocabulary: sportsml-vocabulary-specific-rugby.penalty-type</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-level" type="string" use="optional">
      <annotation>
        <documentation>External controlled vocabulary: sportsml-vocabulary-specific-rugby.penalty-level</documentation>
      </annotation>
    </attribute>
    <attribute name="caution-value" type="string" use="optional">
      <annotation>
        <documentation>Used to indicate what value, if any, the penalty adds to the caution-total of the player.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding the penalty.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Element sportsml:action-rugby-timeout
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A timeout is called. | How, when and what type of timeout was called.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#action-rugby-timeout_timeout-duration sportsml-specific-rugby_xsd.tmp#action-rugby-timeout_caller sportsml-specific-rugby_xsd.tmp#action-rugby-timeout_caller-idref sportsml-specific-rugby_xsd.tmp#action-rugby-timeout_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
caller restriction of string optional
Who called the timeout, either team or official.
caller-idref IDREF optional
If caller is team, say, an idref pointer to the team element.
comment string optional
Textual comment about the timeout.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
timeout-duration string optional
The duration of the timeout.
Source
<element name="action-rugby-timeout">
  <annotation>
    <documentation>A timeout is called. | How, when and what type of timeout was called.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="timeout-duration" type="string" use="optional">
      <annotation>
        <documentation>The duration of the timeout.</documentation>
      </annotation>
    </attribute>
    <attribute name="caller" use="optional">
      <annotation>
        <documentation>Who called the timeout, either team or official.</documentation>
      </annotation>
      <simpleType>
        <restriction base="string">
          <enumeration value="team"/>
          <enumeration value="official"/>
        </restriction>
      </simpleType>
    </attribute>
    <attribute name="caller-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>If caller is team, say, an idref pointer to the team element.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the timeout.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

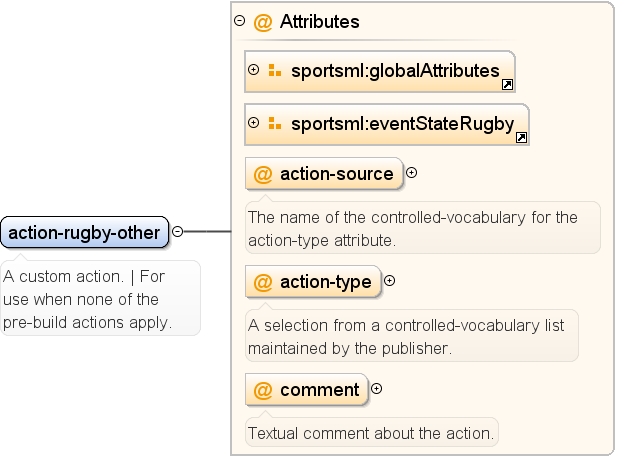

Element sportsml:action-rugby-other
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
A custom action. | For use when none of the pre-build actions apply.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#action-rugby-other_action-source sportsml-specific-rugby_xsd.tmp#action-rugby-other_action-type sportsml-specific-rugby_xsd.tmp#action-rugby-other_comment
Properties
content complex
Used by
Attributes
QName Type Use Annotation
action-source string optional
The name of the controlled-vocabulary for the action-type attribute.
action-type string optional
A selection from a controlled-vocabulary list maintained by the publisher.
comment string optional
Textual comment about the action.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
Source
<element name="action-rugby-other">
  <annotation>
    <documentation>A custom action. | For use when none of the pre-build actions apply.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="action-source" type="string" use="optional">
      <annotation>
        <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
      </annotation>
    </attribute>
    <attribute name="action-type" type="string" use="optional">
      <annotation>
        <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment about the action.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

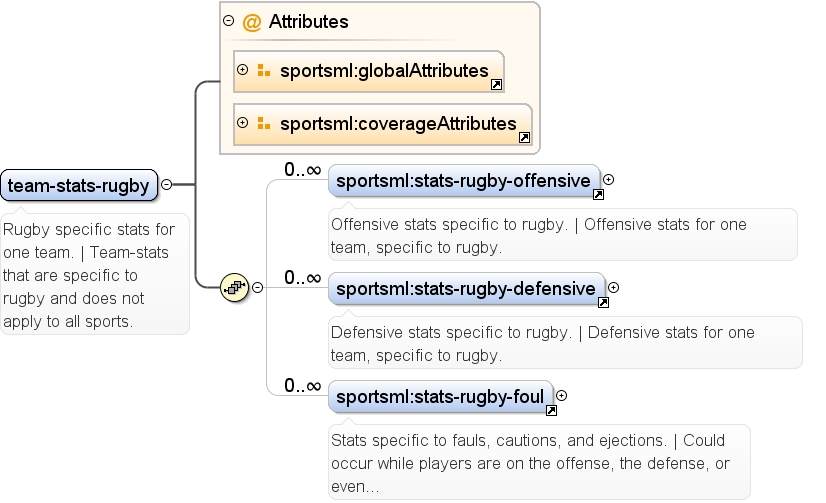

Element sportsml:team-stats-rugby
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Rugby specific stats for one team. | Team-stats that are specific to rugby and does not apply to all sports.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive sportsml-specific-rugby_xsd.tmp#stats-rugby-foul
Properties
content complex
Used by
Model
Children sportsml:stats-rugby-defensive, sportsml:stats-rugby-foul, sportsml:stats-rugby-offensive
Instance
<sportsml:team-stats-rugby alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-rugby-offensive alignment-scope="" competition-scope="" conversion-attempts="" conversions-scored="" conversions-scored-per-game="" date-coverage-type="" date-coverage-value="" drop-goal-attempts="" drop-goals-scored="" drop-goals-scored-per-game="" duration-scope="" free-kicks-per-game="" free-kicks-total="" handling-errors="" handling-errors-per-game="" id="" kicks-into-touch="" kicks-total="" line-outs-total="" line-outs-won-for="" mauls-total="" mauls-won-for="" metres-gained="" penalty-goal-attempts="" penalty-goals-scored="" penalty-goals-scored-per-game="" penalty-tries-per-game="" penalty-tries-total="" period-value="" position-scope="" record-making-scope="" rucks-total="" rucks-won-for="" runs="" scoping-label="" scrums-total="" scrums-won-for="" stats-coverage="" team-coverage="" tries-scored="" tries-scored-per-game="">{0,unbounded}</sportsml:stats-rugby-offensive>
  <sportsml:stats-rugby-defensive alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" line-outs-won-against="" mauls-won-against="" penalties-conceded="" penalties-conceded-per-game="" period-value="" position-scope="" record-making-scope="" rucks-won-against="" scoping-label="" scrums-won-against="" stats-coverage="" tackles="" tackles-missed="" team-coverage="">{0,unbounded}</sportsml:stats-rugby-defensive>
  <sportsml:stats-rugby-foul alignment-scope="" caution-points-pending="" caution-points-total="" cautions-pending="" cautions-per-game="" cautions-total="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" ejections-per-game="" ejections-total="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-rugby-foul>
</sportsml:team-stats-rugby>
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source
<element name="team-stats-rugby">
  <annotation>
    <documentation>Rugby specific stats for one team. | Team-stats that are specific to rugby and does not apply to all sports.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-rugby-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-rugby-defensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-rugby-foul" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

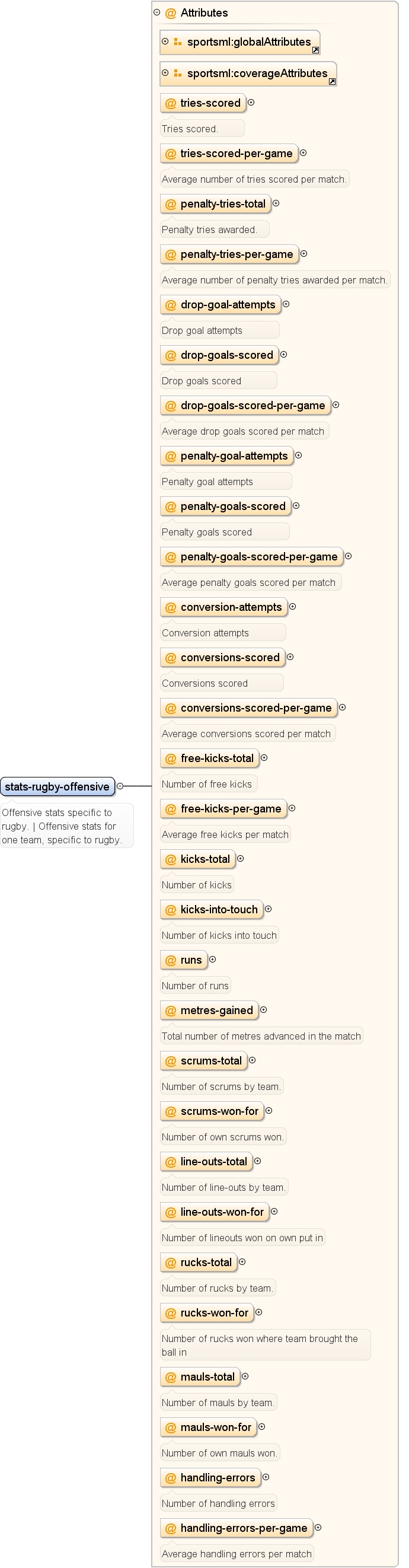

Element sportsml:stats-rugby-offensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Offensive stats specific to rugby. | Offensive stats for one team, specific to rugby.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_tries-scored sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_tries-scored-per-game sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_penalty-tries-total sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_penalty-tries-per-game sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_drop-goal-attempts sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_drop-goals-scored sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_drop-goals-scored-per-game sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_penalty-goal-attempts sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_penalty-goals-scored sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_penalty-goals-scored-per-game sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_conversion-attempts sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_conversions-scored sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_conversions-scored-per-game sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_free-kicks-total sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_free-kicks-per-game sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_kicks-total sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_kicks-into-touch sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_runs sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_metres-gained sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_scrums-total sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_scrums-won-for sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_line-outs-total sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_line-outs-won-for sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_rucks-total sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_rucks-won-for sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_mauls-total sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_mauls-won-for sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_handling-errors sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive_handling-errors-per-game
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
conversion-attempts string optional
Conversion attempts
conversions-scored string optional
Conversions scored
conversions-scored-per-game string optional
Average conversions scored per match
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
drop-goal-attempts string optional
Drop goal attempts
drop-goals-scored string optional
Drop goals scored
drop-goals-scored-per-game string optional
Average drop goals scored per match
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
free-kicks-per-game string optional
Average free kicks per match
free-kicks-total string optional
Number of free kicks
handling-errors string optional
Number of handling errors
handling-errors-per-game string optional
Average handling errors per match
id ID optional
An XML-specific identifier for the element.
kicks-into-touch string optional
Number of kicks into touch
kicks-total string optional
Number of kicks
line-outs-total string optional
Number of line-outs by team.
line-outs-won-for string optional
Number of lineouts won on own put in
mauls-total string optional
Number of mauls by team.
mauls-won-for string optional
Number of own mauls won.
metres-gained string optional
Total number of metres advanced in the match
penalty-goal-attempts string optional
Penalty goal attempts
penalty-goals-scored string optional
Penalty goals scored
penalty-goals-scored-per-game string optional
Average penalty goals scored per match
penalty-tries-per-game string optional
Average number of penalty tries awarded per match.
penalty-tries-total string optional
Penalty tries awarded.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
rucks-total string optional
Number of rucks by team.
rucks-won-for string optional
Number of rucks won where team brought the ball in
runs string optional
Number of runs
scoping-label string optional
A textual description for the scope.
scrums-total string optional
Number of scrums by team.
scrums-won-for string optional
Number of own scrums won.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
tries-scored string optional
Tries scored.
tries-scored-per-game string optional
Average number of tries scored per match.
Source
<element name="stats-rugby-offensive">
  <annotation>
    <documentation>Offensive stats specific to rugby. | Offensive stats for one team, specific to rugby.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="tries-scored" type="string" use="optional">
      <annotation>
        <documentation>Tries scored.</documentation>
      </annotation>
    </attribute>
    <attribute name="tries-scored-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of tries scored per match.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-tries-total" type="string" use="optional">
      <annotation>
        <documentation>Penalty tries awarded.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-tries-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of penalty tries awarded per match.</documentation>
      </annotation>
    </attribute>
    <attribute name="drop-goal-attempts" type="string" use="optional">
      <annotation>
        <documentation>Drop goal attempts</documentation>
      </annotation>
    </attribute>
    <attribute name="drop-goals-scored" type="string" use="optional">
      <annotation>
        <documentation>Drop goals scored</documentation>
      </annotation>
    </attribute>
    <attribute name="drop-goals-scored-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average drop goals scored per match</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-goal-attempts" type="string" use="optional">
      <annotation>
        <documentation>Penalty goal attempts</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-goals-scored" type="string" use="optional">
      <annotation>
        <documentation>Penalty goals scored</documentation>
      </annotation>
    </attribute>
    <attribute name="penalty-goals-scored-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average penalty goals scored per match</documentation>
      </annotation>
    </attribute>
    <attribute name="conversion-attempts" type="string" use="optional">
      <annotation>
        <documentation>Conversion attempts</documentation>
      </annotation>
    </attribute>
    <attribute name="conversions-scored" type="string" use="optional">
      <annotation>
        <documentation>Conversions scored</documentation>
      </annotation>
    </attribute>
    <attribute name="conversions-scored-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average conversions scored per match</documentation>
      </annotation>
    </attribute>
    <attribute name="free-kicks-total" type="string" use="optional">
      <annotation>
        <documentation>Number of free kicks</documentation>
      </annotation>
    </attribute>
    <attribute name="free-kicks-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average free kicks per match</documentation>
      </annotation>
    </attribute>
    <attribute name="kicks-total" type="string" use="optional">
      <annotation>
        <documentation>Number of kicks</documentation>
      </annotation>
    </attribute>
    <attribute name="kicks-into-touch" type="string" use="optional">
      <annotation>
        <documentation>Number of kicks into touch</documentation>
      </annotation>
    </attribute>
    <attribute name="runs" type="string" use="optional">
      <annotation>
        <documentation>Number of runs</documentation>
      </annotation>
    </attribute>
    <attribute name="metres-gained" type="string" use="optional">
      <annotation>
        <documentation>Total number of metres advanced in the match</documentation>
      </annotation>
    </attribute>
    <attribute name="scrums-total" type="string" use="optional">
      <annotation>
        <documentation>Number of scrums by team.</documentation>
      </annotation>
    </attribute>
    <attribute name="scrums-won-for" type="string" use="optional">
      <annotation>
        <documentation>Number of own scrums won.</documentation>
      </annotation>
    </attribute>
    <attribute name="line-outs-total" type="string" use="optional">
      <annotation>
        <documentation>Number of line-outs by team.</documentation>
      </annotation>
    </attribute>
    <attribute name="line-outs-won-for" type="string" use="optional">
      <annotation>
        <documentation>Number of lineouts won on own put in</documentation>
      </annotation>
    </attribute>
    <attribute name="rucks-total" type="string" use="optional">
      <annotation>
        <documentation>Number of rucks by team.</documentation>
      </annotation>
    </attribute>
    <attribute name="rucks-won-for" type="string" use="optional">
      <annotation>
        <documentation>Number of rucks won where team brought the ball in</documentation>
      </annotation>
    </attribute>
    <attribute name="mauls-total" type="string" use="optional">
      <annotation>
        <documentation>Number of mauls by team.</documentation>
      </annotation>
    </attribute>
    <attribute name="mauls-won-for" type="string" use="optional">
      <annotation>
        <documentation>Number of own mauls won.</documentation>
      </annotation>
    </attribute>
    <attribute name="handling-errors" type="string" use="optional">
      <annotation>
        <documentation>Number of handling errors</documentation>
      </annotation>
    </attribute>
    <attribute name="handling-errors-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average handling errors per match</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

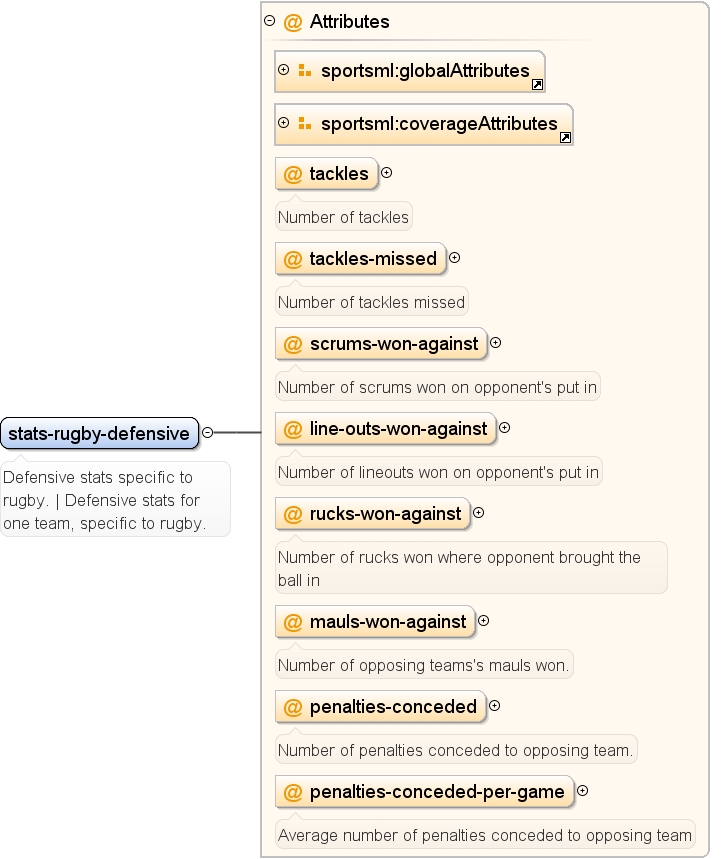

Element sportsml:stats-rugby-defensive
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Defensive stats specific to rugby. | Defensive stats for one team, specific to rugby.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive_tackles sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive_tackles-missed sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive_scrums-won-against sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive_line-outs-won-against sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive_rucks-won-against sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive_mauls-won-against sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive_penalties-conceded sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive_penalties-conceded-per-game
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
line-outs-won-against string optional
Number of lineouts won on opponent's put in
mauls-won-against string optional
Number of opposing teams's mauls won.
penalties-conceded string optional
Number of penalties conceded to opposing team.
penalties-conceded-per-game string optional
Average number of penalties conceded to opposing team
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
rucks-won-against string optional
Number of rucks won where opponent brought the ball in
scoping-label string optional
A textual description for the scope.
scrums-won-against string optional
Number of scrums won on opponent's put in
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
tackles string optional
Number of tackles
tackles-missed string optional
Number of tackles missed
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source
<element name="stats-rugby-defensive">
  <annotation>
    <documentation>Defensive stats specific to rugby. | Defensive stats for one team, specific to rugby.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="tackles" type="string" use="optional">
      <annotation>
        <documentation>Number of tackles</documentation>
      </annotation>
    </attribute>
    <attribute name="tackles-missed" type="string" use="optional">
      <annotation>
        <documentation>Number of tackles missed</documentation>
      </annotation>
    </attribute>
    <attribute name="scrums-won-against" type="string" use="optional">
      <annotation>
        <documentation>Number of scrums won on opponent's put in</documentation>
      </annotation>
    </attribute>
    <attribute name="line-outs-won-against" type="string" use="optional">
      <annotation>
        <documentation>Number of lineouts won on opponent's put in</documentation>
      </annotation>
    </attribute>
    <attribute name="rucks-won-against" type="string" use="optional">
      <annotation>
        <documentation>Number of rucks won where opponent brought the ball in</documentation>
      </annotation>
    </attribute>
    <attribute name="mauls-won-against" type="string" use="optional">
      <annotation>
        <documentation>Number of opposing teams's mauls won.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalties-conceded" type="string" use="optional">
      <annotation>
        <documentation>Number of penalties conceded to opposing team.</documentation>
      </annotation>
    </attribute>
    <attribute name="penalties-conceded-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of penalties conceded to opposing team</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

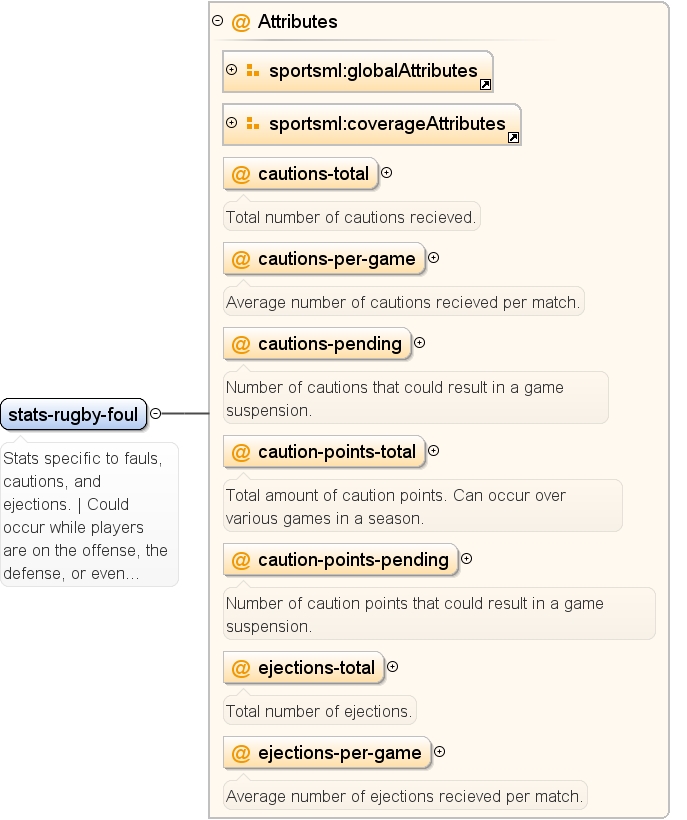

Element sportsml:stats-rugby-foul
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Stats specific to fauls, cautions, and ejections. | Could occur while players are on the offense, the defense, or even the bench.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-rugby_xsd.tmp#stats-rugby-foul_cautions-total sportsml-specific-rugby_xsd.tmp#stats-rugby-foul_cautions-per-game sportsml-specific-rugby_xsd.tmp#stats-rugby-foul_cautions-pending sportsml-specific-rugby_xsd.tmp#stats-rugby-foul_caution-points-total sportsml-specific-rugby_xsd.tmp#stats-rugby-foul_caution-points-pending sportsml-specific-rugby_xsd.tmp#stats-rugby-foul_ejections-total sportsml-specific-rugby_xsd.tmp#stats-rugby-foul_ejections-per-game
Properties
content complex
Used by
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
caution-points-pending string optional
Number of caution points that could result in a game suspension.
caution-points-total string optional
Total amount of caution points. Can occur over various games in a season.
cautions-pending string optional
Number of cautions that could result in a game suspension.
cautions-per-game string optional
Average number of cautions recieved per match.
cautions-total string optional
Total number of cautions recieved.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
ejections-per-game string optional
Average number of ejections recieved per match.
ejections-total string optional
Total number of ejections.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source
<element name="stats-rugby-foul">
  <annotation>
    <documentation>Stats specific to fauls, cautions, and ejections. | Could occur while players are on the offense, the defense, or even the bench.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
    <attribute name="cautions-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of cautions recieved.</documentation>
      </annotation>
    </attribute>
    <attribute name="cautions-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of cautions recieved per match.</documentation>
      </annotation>
    </attribute>
    <attribute name="cautions-pending" type="string" use="optional">
      <annotation>
        <documentation>Number of cautions that could result in a game suspension.</documentation>
      </annotation>
    </attribute>
    <attribute name="caution-points-total" type="string" use="optional">
      <annotation>
        <documentation>Total amount of caution points. Can occur over various games in a season.</documentation>
      </annotation>
    </attribute>
    <attribute name="caution-points-pending" type="string" use="optional">
      <annotation>
        <documentation>Number of caution points that could result in a game suspension.</documentation>
      </annotation>
    </attribute>
    <attribute name="ejections-total" type="string" use="optional">
      <annotation>
        <documentation>Total number of ejections.</documentation>
      </annotation>
    </attribute>
    <attribute name="ejections-per-game" type="string" use="optional">
      <annotation>
        <documentation>Average number of ejections recieved per match.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

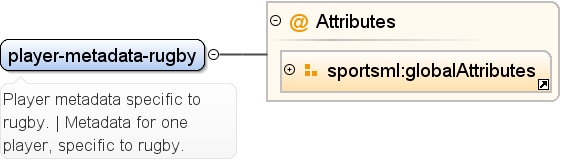

Element sportsml:player-metadata-rugby
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Player metadata specific to rugby. | Metadata for one player, specific to rugby.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content complex
Used by
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="player-metadata-rugby">
  <annotation>
    <documentation>Player metadata specific to rugby. | Metadata for one player, specific to rugby.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd

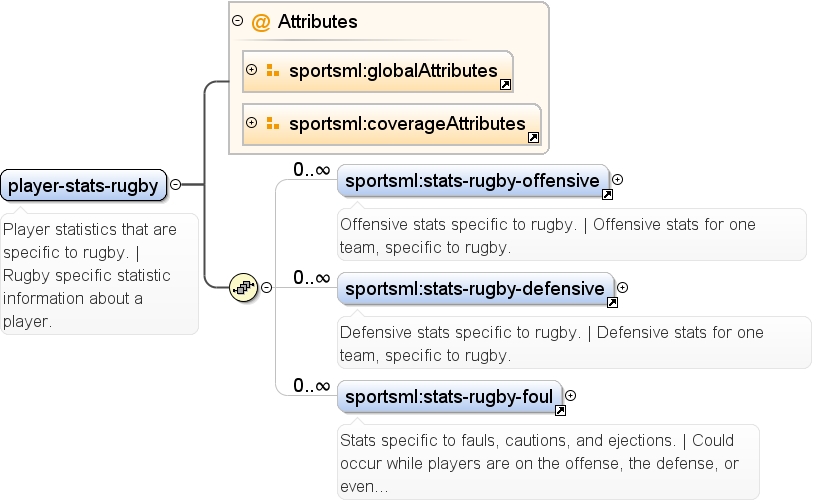

Element sportsml:player-stats-rugby
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Player statistics that are specific to rugby. | Rugby specific statistic information about a player.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-core_xsd.tmp#coverageAttributes sportsml-specific-rugby_xsd.tmp#stats-rugby-offensive sportsml-specific-rugby_xsd.tmp#stats-rugby-defensive sportsml-specific-rugby_xsd.tmp#stats-rugby-foul
Properties
content complex
Used by
Model
Children sportsml:stats-rugby-defensive, sportsml:stats-rugby-foul, sportsml:stats-rugby-offensive
Instance
<sportsml:player-stats-rugby alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="" xmlns:sportsml="http://iptc.org/std/SportsML/2008-04-01/">
  <sportsml:stats-rugby-offensive alignment-scope="" competition-scope="" conversion-attempts="" conversions-scored="" conversions-scored-per-game="" date-coverage-type="" date-coverage-value="" drop-goal-attempts="" drop-goals-scored="" drop-goals-scored-per-game="" duration-scope="" free-kicks-per-game="" free-kicks-total="" handling-errors="" handling-errors-per-game="" id="" kicks-into-touch="" kicks-total="" line-outs-total="" line-outs-won-for="" mauls-total="" mauls-won-for="" metres-gained="" penalty-goal-attempts="" penalty-goals-scored="" penalty-goals-scored-per-game="" penalty-tries-per-game="" penalty-tries-total="" period-value="" position-scope="" record-making-scope="" rucks-total="" rucks-won-for="" runs="" scoping-label="" scrums-total="" scrums-won-for="" stats-coverage="" team-coverage="" tries-scored="" tries-scored-per-game="">{0,unbounded}</sportsml:stats-rugby-offensive>
  <sportsml:stats-rugby-defensive alignment-scope="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" id="" line-outs-won-against="" mauls-won-against="" penalties-conceded="" penalties-conceded-per-game="" period-value="" position-scope="" record-making-scope="" rucks-won-against="" scoping-label="" scrums-won-against="" stats-coverage="" tackles="" tackles-missed="" team-coverage="">{0,unbounded}</sportsml:stats-rugby-defensive>
  <sportsml:stats-rugby-foul alignment-scope="" caution-points-pending="" caution-points-total="" cautions-pending="" cautions-per-game="" cautions-total="" competition-scope="" date-coverage-type="" date-coverage-value="" duration-scope="" ejections-per-game="" ejections-total="" id="" period-value="" position-scope="" record-making-scope="" scoping-label="" stats-coverage="" team-coverage="">{0,unbounded}</sportsml:stats-rugby-foul>
</sportsml:player-stats-rugby>
Attributes
QName Type Use Annotation
alignment-scope sportsml:alignmentScope.Core optional
Indicates that the included statistics apply only to events played either at home or away.
competition-scope sportsml:competitionScope.Core optional
Indicates that the included statistics apply only to events against particular groups of opponents, such as those in the same division.
date-coverage-type sportsml:dateCoverageType.Core optional
Describes what time period the statistics describe. Examples: just this week, this event, or this playoff season.
date-coverage-value string optional
Value that further describes the dates covered. Example: if type is season, value can be 2001-2002.
duration-scope sportsml:durationScope.Core optional
Indicates what class of events the included statistics apply. Example: those events that went into overtime.
id ID optional
An XML-specific identifier for the element.
period-value string optional
Used for tracking hits-per-inning, for example.
position-scope string optional
Indicates that the included statistics apply only to while played at a particular position.
record-making-scope sportsml:recordMakingScope.Core optional
Indicates that the included statistics apply only to values that set a record, such as a team-high, or an individual-low.
scoping-label string optional
A textual description for the scope.
stats-coverage sportsml:statsCoverage.Core optional
A relative indication of how many statistics are included in the item.
team-coverage sportsml:teamCoverage.Core optional
Indicates whether the item contains information about one team, or many teams.
Source
<element name="player-stats-rugby">
  <annotation>
    <documentation>Player statistics that are specific to rugby. | Rugby specific statistic information about a player.</documentation>
  </annotation>
  <complexType>
    <sequence>
      <element ref="sportsml:stats-rugby-offensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-rugby-defensive" minOccurs="0" maxOccurs="unbounded"/>
      <element ref="sportsml:stats-rugby-foul" minOccurs="0" maxOccurs="unbounded"/>
    </sequence>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:coverageAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Element sportsml:time-adjustment-rugby
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Record time added by referee. | Holds values for the time added by the referee and how much extra time was actually played.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#time-adjustment-rugby_period-extra-time-added sportsml-specific-rugby_xsd.tmp#time-adjustment-rugby_period-extra-time-elapsed
Properties
content complex
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-extra-time-added string optional
How many minutes the referee has decided to add to the period.
period-extra-time-elapsed string optional
How much time exactly MMSS that was actually elapsed in the period.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
Source
<element name="time-adjustment-rugby">
  <annotation>
    <documentation>Record time added by referee. | Holds values for the time added by the referee and how much extra time was actually played.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="period-extra-time-added" type="string" use="optional">
      <annotation>
        <documentation>How many minutes the referee has decided to add to the period.</documentation>
      </annotation>
    </attribute>
    <attribute name="period-extra-time-elapsed" type="string" use="optional">
      <annotation>
        <documentation>How much time exactly MMSS that was actually elapsed in the period.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Element sportsml:team-metadata-rugby
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
Rugby specific metadata for one team. | The team-metadata that is specific for rugby and does not apply in all sports.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes
Properties
content complex
Attributes
QName Type Use Annotation
id ID optional
An XML-specific identifier for the element.
Source
<element name="team-metadata-rugby">
  <annotation>
    <documentation>Rugby specific metadata for one team. | The team-metadata that is specific for rugby and does not apply in all sports.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Element sportsml:action-rugby-foul
Namespace http://iptc.org/std/SportsML/2008-04-01/
Annotations
When a player commits an infraction against the rules, which may or may not result in a penalty. | Records what happens (or not happens) when a player commits a foul. Cautions and ejections are recorded under penalty.
Diagram
Diagram sportsml-core_xsd.tmp#globalAttributes sportsml-specific-rugby_xsd.tmp#eventStateRugby sportsml-specific-rugby_xsd.tmp#action-rugby-foul_fouling-team-idref sportsml-specific-rugby_xsd.tmp#action-rugby-foul_fouling-player-idref sportsml-specific-rugby_xsd.tmp#action-rugby-foul_fouled-team-idref sportsml-specific-rugby_xsd.tmp#action-rugby-foul_fouled-player-idref sportsml-specific-rugby_xsd.tmp#action-rugby-foul_foul-name sportsml-specific-rugby_xsd.tmp#action-rugby-foul_foul-result sportsml-specific-rugby_xsd.tmp#action-rugby-foul_comment
Properties
content complex
Attributes
QName Type Use Annotation
comment string optional
Textual comment regarding the penalty.
foul-name string optional
The name of the foul was committed. External controlled vocabulary: sportsml-vocabulary-specific-rugby.foul-name
foul-result string optional
External controlled vocabulary: sportsml-vocabulary-specific-rugby.foul-result
fouled-player-idref IDREF optional
idref pointing to the player beeing fouled.
fouled-team-idref IDREF optional
idref pointing to the team beeing fouled.
fouling-player-idref IDREF optional
idref pointing to the player causing the foul.
fouling-team-idref IDREF optional
idref pointing to the team causing the foul.
id ID optional
An XML-specific identifier for the element.
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
Source
<element name="action-rugby-foul">
  <annotation>
    <documentation>When a player commits an infraction against the rules, which may or may not result in a penalty. | Records what happens (or not happens) when a player commits a foul. Cautions and ejections are recorded under penalty.</documentation>
  </annotation>
  <complexType>
    <attributeGroup ref="sportsml:globalAttributes"/>
    <attributeGroup ref="sportsml:eventStateRugby"/>
    <attribute name="fouling-team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team causing the foul.</documentation>
      </annotation>
    </attribute>
    <attribute name="fouling-player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player causing the foul.</documentation>
      </annotation>
    </attribute>
    <attribute name="fouled-team-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the team beeing fouled.</documentation>
      </annotation>
    </attribute>
    <attribute name="fouled-player-idref" type="IDREF" use="optional">
      <annotation>
        <documentation>idref pointing to the player beeing fouled.</documentation>
      </annotation>
    </attribute>
    <attribute name="foul-name" type="string" use="optional">
      <annotation>
        <documentation>The name of the foul was committed. External controlled vocabulary: sportsml-vocabulary-specific-rugby.foul-name</documentation>
      </annotation>
    </attribute>
    <attribute name="foul-result" type="string" use="optional">
      <annotation>
        <documentation>External controlled vocabulary: sportsml-vocabulary-specific-rugby.foul-result</documentation>
      </annotation>
    </attribute>
    <attribute name="comment" type="string" use="optional">
      <annotation>
        <documentation>Textual comment regarding the penalty.</documentation>
      </annotation>
    </attribute>
  </complexType>
</element>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:eventStateRugby / @period-value
Namespace No namespace
Annotations
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateRugby
Source
<attribute name="period-value" type="string" use="optional">
  <annotation>
    <documentation>Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:eventStateRugby / @period-time-elapsed
Namespace No namespace
Annotations
Detailed time MMSS that has elapsed.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateRugby
Source
<attribute name="period-time-elapsed" type="string" use="optional">
  <annotation>
    <documentation>Detailed time MMSS that has elapsed.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:eventStateRugby / @minutes-elapsed
Namespace No namespace
Annotations
Number of minutes that have elapsed since the beginning of the game.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateRugby
Source
<attribute name="minutes-elapsed" type="string" use="optional">
  <annotation>
    <documentation>Number of minutes that have elapsed since the beginning of the game.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:eventStateRugby / @period-minute-elapsed
Namespace No namespace
Annotations
The time elapsed, but only given as whole minutes.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateRugby
Source
<attribute name="period-minute-elapsed" type="string" use="optional">
  <annotation>
    <documentation>The time elapsed, but only given as whole minutes.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:eventStateRugby / @period-time-remaining
Namespace No namespace
Annotations
Detailed time in MMSS format showing remaining time of period.
Type string
Properties
use optional
Used by
Attribute Group sportsml:eventStateRugby
Source
<attribute name="period-time-remaining" type="string" use="optional">
  <annotation>
    <documentation>Detailed time in MMSS format showing remaining time of period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:event-metadata-rugby / @kick-off-team-idref
Namespace No namespace
Annotations
Pointer to the team doing the kick-off for the period covered.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="kick-off-team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>Pointer to the team doing the kick-off for the period covered.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @person-type
Namespace No namespace
Annotations
What position the person beeing replaced held.
Type restriction of string
Properties
use optional
Facets
enumeration player
enumeration associate
enumeration official
Used by
Source
<attribute name="person-type" use="optional">
  <annotation>
    <documentation>What position the person beeing replaced held.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="player"/>
      <enumeration value="associate"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @person-original-idref
Namespace No namespace
Annotations
A pointer to the person beeing replaced.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="person-original-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the person beeing replaced.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @person-original-position
Namespace No namespace
Annotations
Position the replaced person held.
Type sportsml:position.Rugby
Properties
use optional
Used by
Source
<attribute name="person-original-position" type="sportsml:position.Rugby" use="optional">
  <annotation>
    <documentation>Position the replaced person held.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @person-replacing-idref
Namespace No namespace
Annotations
A pointer to the person replacing.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="person-replacing-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the person replacing.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @person-replacing-position
Namespace No namespace
Annotations
Position the substitute will take up.  External controlled vocabulary: sportsml-vocabulary-specific-rugby.position
Type string
Properties
use optional
Used by
Source
<attribute name="person-replacing-position" type="string" use="optional">
  <annotation>
    <documentation>Position the substitute will take up. External controlled vocabulary: sportsml-vocabulary-specific-rugby.position</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @substitution-reason
Namespace No namespace
Annotations
Text explaining the reason for the substitute.
Type string
Properties
use optional
Used by
Source
<attribute name="substitution-reason" type="string" use="optional">
  <annotation>
    <documentation>Text explaining the reason for the substitute.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @substitution-type
Namespace No namespace
Annotations
Whether a normal or "blood" substitution
Type string
Properties
use optional
Used by
Source
<attribute name="substitution-type" type="string" use="optional">
  <annotation>
    <documentation>Whether a normal or "blood" substitution</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @team-idref
Namespace No namespace
Annotations
A pointer to the team doing the substitution.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>A pointer to the team doing the substitution.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-substitution / @comment
Namespace No namespace
Annotations
Textual comment regarding this substitution.
Type string
Properties
use optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding this substitution.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score-attempt / @player-idref
Namespace No namespace
Annotations
idref pointing to the player attempting to score.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score-attempt / @team-idref
Namespace No namespace
Annotations
idref pointing to the team for which the player attempting to score.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team for which the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score-attempt / @score-attempt-method
Namespace No namespace
Annotations
How the player attempted to score. Using head, left leg, right leg etc. External controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-method
Type string
Properties
use optional
Used by
Source
<attribute name="score-attempt-method" type="string" use="optional">
  <annotation>
    <documentation>How the player attempted to score. Using head, left leg, right leg etc. External controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-method</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score-attempt / @score-attempt-type
Namespace No namespace
Annotations
What type of attempt. External controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-type
Type string
Properties
use optional
Used by
Source
<attribute name="score-attempt-type" type="string" use="optional">
  <annotation>
    <documentation>What type of attempt. External controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-type</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score-attempt / @score-attempt-result
Namespace No namespace
Annotations
What the attempt resulted in Values in external controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-result
Type string
Properties
use optional
Used by
Source
<attribute name="score-attempt-result" type="string" use="optional">
  <annotation>
    <documentation>What the attempt resulted in Values in external controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-result</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score-attempt / @comment
Namespace No namespace
Annotations
Textual comment regarding this score-attempt.
Type string
Properties
use optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding this score-attempt.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score / @score-attempt-method
Namespace No namespace
Annotations
How the player attempted to score. Using head, left leg, right leg etc.
Type string
Properties
use optional
Used by
Source
<attribute name="score-attempt-method" type="string" use="optional">
  <annotation>
    <documentation>How the player attempted to score. Using head, left leg, right leg etc.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score / @score-attempt-type
Namespace No namespace
Annotations
What type of attempt. Values in external controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-type (Note that the same attribute names are used as in score-attempt to avoid the need for duplicated vocabularies.)
Type string
Properties
use optional
Used by
Source
<attribute name="score-attempt-type" type="string" use="optional">
  <annotation>
    <documentation>What type of attempt. Values in external controlled vocabulary: sportsml-vocabulary-specific-rugby.score-attempt-type (Note that the same attribute names are used as in score-attempt to avoid the need for duplicated vocabularies.)</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score / @player-idref
Namespace No namespace
Annotations
idref pointing to the player attempting to score.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score / @team-idref
Namespace No namespace
Annotations
idref pointing to the team for which the player attempting to score.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team for which the player attempting to score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score / @score-team
Namespace No namespace
Annotations
The current score for the scoring team after the score is counted.
Type string
Properties
use optional
Used by
Source
<attribute name="score-team" type="string" use="optional">
  <annotation>
    <documentation>The current score for the scoring team after the score is counted.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score / @score-team-opposing
Namespace No namespace
Annotations
The current score for the opposing team after the score is counted.
Type string
Properties
use optional
Used by
Source
<attribute name="score-team-opposing" type="string" use="optional">
  <annotation>
    <documentation>The current score for the opposing team after the score is counted.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score / @points
Namespace No namespace
Annotations
Number of points awarded: 2|3|5
Type string
Properties
use optional
Used by
Source
<attribute name="points" type="string" use="optional">
  <annotation>
    <documentation>Number of points awarded: 2|3|5</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-score / @comment
Namespace No namespace
Annotations
Textual comment about the score.
Type string
Properties
use optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the score.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-offside / @team-idref
Namespace No namespace
Annotations
idref pointing to the team causing the offside.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team causing the offside.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-offside / @player-offside-idref
Namespace No namespace
Annotations
idref pointing to the player the lineman indicated was offisde.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="player-offside-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player the lineman indicated was offisde.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-offside / @player-passing-idref
Namespace No namespace
Annotations
idref pointing to the player passing the ball when offside was called.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="player-passing-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player passing the ball when offside was called.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-offside / @comment
Namespace No namespace
Annotations
Textual comment regarding the offside.
Type string
Properties
use optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding the offside.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-penalty / @recipient-type
Namespace No namespace
Annotations
What type of person or team that got the penalty.
Type restriction of string
Properties
use optional
Facets
enumeration team
enumeration player
enumeration auxilliary
enumeration official
Used by
Source
<attribute name="recipient-type" use="optional">
  <annotation>
    <documentation>What type of person or team that got the penalty.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="player"/>
      <enumeration value="auxilliary"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-penalty / @recipient-idref
Namespace No namespace
Annotations
idref pointer to the person suffering the penalty.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="recipient-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointer to the person suffering the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-penalty / @caller-idref
Namespace No namespace
Annotations
idref pointing to who called the penalty.
Type string
Properties
use optional
Used by
Source
<attribute name="caller-idref" type="string" use="optional">
  <annotation>
    <documentation>idref pointing to who called the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-penalty / @penalty-type
Namespace No namespace
Annotations
External controlled vocabulary: sportsml-vocabulary-specific-rugby.penalty-type
Type string
Properties
use optional
Used by
Source
<attribute name="penalty-type" type="string" use="optional">
  <annotation>
    <documentation>External controlled vocabulary: sportsml-vocabulary-specific-rugby.penalty-type</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-penalty / @penalty-level
Namespace No namespace
Annotations
External controlled vocabulary: sportsml-vocabulary-specific-rugby.penalty-level
Type string
Properties
use optional
Used by
Source
<attribute name="penalty-level" type="string" use="optional">
  <annotation>
    <documentation>External controlled vocabulary: sportsml-vocabulary-specific-rugby.penalty-level</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-penalty / @caution-value
Namespace No namespace
Annotations
Used to indicate what value, if any, the penalty adds to the caution-total of the player.
Type string
Properties
use optional
Used by
Source
<attribute name="caution-value" type="string" use="optional">
  <annotation>
    <documentation>Used to indicate what value, if any, the penalty adds to the caution-total of the player.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-penalty / @comment
Namespace No namespace
Annotations
Textual comment regarding the penalty.
Type string
Properties
use optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-timeout / @timeout-duration
Namespace No namespace
Annotations
The duration of the timeout.
Type string
Properties
use optional
Used by
Source
<attribute name="timeout-duration" type="string" use="optional">
  <annotation>
    <documentation>The duration of the timeout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-timeout / @caller
Namespace No namespace
Annotations
Who called the timeout, either team or official.
Type restriction of string
Properties
use optional
Facets
enumeration team
enumeration official
Used by
Source
<attribute name="caller" use="optional">
  <annotation>
    <documentation>Who called the timeout, either team or official.</documentation>
  </annotation>
  <simpleType>
    <restriction base="string">
      <enumeration value="team"/>
      <enumeration value="official"/>
    </restriction>
  </simpleType>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-timeout / @caller-idref
Namespace No namespace
Annotations
If caller is team, say, an idref pointer to the team element.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="caller-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>If caller is team, say, an idref pointer to the team element.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-timeout / @comment
Namespace No namespace
Annotations
Textual comment about the timeout.
Type string
Properties
use optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the timeout.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-other / @action-source
Namespace No namespace
Annotations
The name of the controlled-vocabulary for the action-type attribute.
Type string
Properties
use optional
Used by
Source
<attribute name="action-source" type="string" use="optional">
  <annotation>
    <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-other / @action-type
Namespace No namespace
Annotations
A selection from a controlled-vocabulary list maintained by the publisher.
Type string
Properties
use optional
Used by
Source
<attribute name="action-type" type="string" use="optional">
  <annotation>
    <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-other / @comment
Namespace No namespace
Annotations
Textual comment about the action.
Type string
Properties
use optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment about the action.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @tries-scored
Namespace No namespace
Annotations
Tries scored.
Type string
Properties
use optional
Used by
Source
<attribute name="tries-scored" type="string" use="optional">
  <annotation>
    <documentation>Tries scored.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @tries-scored-per-game
Namespace No namespace
Annotations
Average number of tries scored per match.
Type string
Properties
use optional
Used by
Source
<attribute name="tries-scored-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average number of tries scored per match.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @penalty-tries-total
Namespace No namespace
Annotations
Penalty tries awarded.
Type string
Properties
use optional
Used by
Source
<attribute name="penalty-tries-total" type="string" use="optional">
  <annotation>
    <documentation>Penalty tries awarded.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @penalty-tries-per-game
Namespace No namespace
Annotations
Average number of penalty tries awarded per match.
Type string
Properties
use optional
Used by
Source
<attribute name="penalty-tries-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average number of penalty tries awarded per match.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @drop-goal-attempts
Namespace No namespace
Annotations
Drop goal attempts
Type string
Properties
use optional
Used by
Source
<attribute name="drop-goal-attempts" type="string" use="optional">
  <annotation>
    <documentation>Drop goal attempts</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @drop-goals-scored
Namespace No namespace
Annotations
Drop goals scored
Type string
Properties
use optional
Used by
Source
<attribute name="drop-goals-scored" type="string" use="optional">
  <annotation>
    <documentation>Drop goals scored</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @drop-goals-scored-per-game
Namespace No namespace
Annotations
Average drop goals scored per match
Type string
Properties
use optional
Used by
Source
<attribute name="drop-goals-scored-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average drop goals scored per match</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @penalty-goal-attempts
Namespace No namespace
Annotations
Penalty goal attempts
Type string
Properties
use optional
Used by
Source
<attribute name="penalty-goal-attempts" type="string" use="optional">
  <annotation>
    <documentation>Penalty goal attempts</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @penalty-goals-scored
Namespace No namespace
Annotations
Penalty goals scored
Type string
Properties
use optional
Used by
Source
<attribute name="penalty-goals-scored" type="string" use="optional">
  <annotation>
    <documentation>Penalty goals scored</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @penalty-goals-scored-per-game
Namespace No namespace
Annotations
Average penalty goals scored per match
Type string
Properties
use optional
Used by
Source
<attribute name="penalty-goals-scored-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average penalty goals scored per match</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @conversion-attempts
Namespace No namespace
Annotations
Conversion attempts
Type string
Properties
use optional
Used by
Source
<attribute name="conversion-attempts" type="string" use="optional">
  <annotation>
    <documentation>Conversion attempts</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @conversions-scored
Namespace No namespace
Annotations
Conversions scored
Type string
Properties
use optional
Used by
Source
<attribute name="conversions-scored" type="string" use="optional">
  <annotation>
    <documentation>Conversions scored</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @conversions-scored-per-game
Namespace No namespace
Annotations
Average conversions scored per match
Type string
Properties
use optional
Used by
Source
<attribute name="conversions-scored-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average conversions scored per match</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @free-kicks-total
Namespace No namespace
Annotations
Number of free kicks
Type string
Properties
use optional
Used by
Source
<attribute name="free-kicks-total" type="string" use="optional">
  <annotation>
    <documentation>Number of free kicks</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @free-kicks-per-game
Namespace No namespace
Annotations
Average free kicks per match
Type string
Properties
use optional
Used by
Source
<attribute name="free-kicks-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average free kicks per match</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @kicks-total
Namespace No namespace
Annotations
Number of kicks
Type string
Properties
use optional
Used by
Source
<attribute name="kicks-total" type="string" use="optional">
  <annotation>
    <documentation>Number of kicks</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @kicks-into-touch
Namespace No namespace
Annotations
Number of kicks into touch
Type string
Properties
use optional
Used by
Source
<attribute name="kicks-into-touch" type="string" use="optional">
  <annotation>
    <documentation>Number of kicks into touch</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @runs
Namespace No namespace
Annotations
Number of runs
Type string
Properties
use optional
Used by
Source
<attribute name="runs" type="string" use="optional">
  <annotation>
    <documentation>Number of runs</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @metres-gained
Namespace No namespace
Annotations
Total number of metres advanced in the match
Type string
Properties
use optional
Used by
Source
<attribute name="metres-gained" type="string" use="optional">
  <annotation>
    <documentation>Total number of metres advanced in the match</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @scrums-total
Namespace No namespace
Annotations
Number of scrums by team.
Type string
Properties
use optional
Used by
Source
<attribute name="scrums-total" type="string" use="optional">
  <annotation>
    <documentation>Number of scrums by team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @scrums-won-for
Namespace No namespace
Annotations
Number of own scrums won.
Type string
Properties
use optional
Used by
Source
<attribute name="scrums-won-for" type="string" use="optional">
  <annotation>
    <documentation>Number of own scrums won.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @line-outs-total
Namespace No namespace
Annotations
Number of line-outs by team.
Type string
Properties
use optional
Used by
Source
<attribute name="line-outs-total" type="string" use="optional">
  <annotation>
    <documentation>Number of line-outs by team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @line-outs-won-for
Namespace No namespace
Annotations
Number of lineouts won on own put in
Type string
Properties
use optional
Used by
Source
<attribute name="line-outs-won-for" type="string" use="optional">
  <annotation>
    <documentation>Number of lineouts won on own put in</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @rucks-total
Namespace No namespace
Annotations
Number of rucks by team.
Type string
Properties
use optional
Used by
Source
<attribute name="rucks-total" type="string" use="optional">
  <annotation>
    <documentation>Number of rucks by team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @rucks-won-for
Namespace No namespace
Annotations
Number of rucks won where team brought the ball in
Type string
Properties
use optional
Used by
Source
<attribute name="rucks-won-for" type="string" use="optional">
  <annotation>
    <documentation>Number of rucks won where team brought the ball in</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @mauls-total
Namespace No namespace
Annotations
Number of mauls by team.
Type string
Properties
use optional
Used by
Source
<attribute name="mauls-total" type="string" use="optional">
  <annotation>
    <documentation>Number of mauls by team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @mauls-won-for
Namespace No namespace
Annotations
Number of own mauls won.
Type string
Properties
use optional
Used by
Source
<attribute name="mauls-won-for" type="string" use="optional">
  <annotation>
    <documentation>Number of own mauls won.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @handling-errors
Namespace No namespace
Annotations
Number of handling errors
Type string
Properties
use optional
Used by
Source
<attribute name="handling-errors" type="string" use="optional">
  <annotation>
    <documentation>Number of handling errors</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-offensive / @handling-errors-per-game
Namespace No namespace
Annotations
Average handling errors per match
Type string
Properties
use optional
Used by
Source
<attribute name="handling-errors-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average handling errors per match</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-defensive / @tackles
Namespace No namespace
Annotations
Number of tackles
Type string
Properties
use optional
Used by
Source
<attribute name="tackles" type="string" use="optional">
  <annotation>
    <documentation>Number of tackles</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-defensive / @tackles-missed
Namespace No namespace
Annotations
Number of tackles missed
Type string
Properties
use optional
Used by
Source
<attribute name="tackles-missed" type="string" use="optional">
  <annotation>
    <documentation>Number of tackles missed</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-defensive / @scrums-won-against
Namespace No namespace
Annotations
Number of scrums won on opponent's put in
Type string
Properties
use optional
Used by
Source
<attribute name="scrums-won-against" type="string" use="optional">
  <annotation>
    <documentation>Number of scrums won on opponent's put in</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-defensive / @line-outs-won-against
Namespace No namespace
Annotations
Number of lineouts won on opponent's put in
Type string
Properties
use optional
Used by
Source
<attribute name="line-outs-won-against" type="string" use="optional">
  <annotation>
    <documentation>Number of lineouts won on opponent's put in</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-defensive / @rucks-won-against
Namespace No namespace
Annotations
Number of rucks won where opponent brought the ball in
Type string
Properties
use optional
Used by
Source
<attribute name="rucks-won-against" type="string" use="optional">
  <annotation>
    <documentation>Number of rucks won where opponent brought the ball in</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-defensive / @mauls-won-against
Namespace No namespace
Annotations
Number of opposing teams's mauls won.
Type string
Properties
use optional
Used by
Source
<attribute name="mauls-won-against" type="string" use="optional">
  <annotation>
    <documentation>Number of opposing teams's mauls won.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-defensive / @penalties-conceded
Namespace No namespace
Annotations
Number of penalties conceded to opposing team.
Type string
Properties
use optional
Used by
Source
<attribute name="penalties-conceded" type="string" use="optional">
  <annotation>
    <documentation>Number of penalties conceded to opposing team.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-defensive / @penalties-conceded-per-game
Namespace No namespace
Annotations
Average number of penalties conceded to opposing team
Type string
Properties
use optional
Used by
Source
<attribute name="penalties-conceded-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average number of penalties conceded to opposing team</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-foul / @cautions-total
Namespace No namespace
Annotations
Total number of cautions recieved.
Type string
Properties
use optional
Used by
Source
<attribute name="cautions-total" type="string" use="optional">
  <annotation>
    <documentation>Total number of cautions recieved.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-foul / @cautions-per-game
Namespace No namespace
Annotations
Average number of cautions recieved per match.
Type string
Properties
use optional
Used by
Source
<attribute name="cautions-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average number of cautions recieved per match.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-foul / @cautions-pending
Namespace No namespace
Annotations
Number of cautions that could result in a game suspension.
Type string
Properties
use optional
Used by
Source
<attribute name="cautions-pending" type="string" use="optional">
  <annotation>
    <documentation>Number of cautions that could result in a game suspension.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-foul / @caution-points-total
Namespace No namespace
Annotations
Total amount of caution points. Can occur over various games in a season.
Type string
Properties
use optional
Used by
Source
<attribute name="caution-points-total" type="string" use="optional">
  <annotation>
    <documentation>Total amount of caution points. Can occur over various games in a season.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-foul / @caution-points-pending
Namespace No namespace
Annotations
Number of caution points that could result in a game suspension.
Type string
Properties
use optional
Used by
Source
<attribute name="caution-points-pending" type="string" use="optional">
  <annotation>
    <documentation>Number of caution points that could result in a game suspension.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-foul / @ejections-total
Namespace No namespace
Annotations
Total number of ejections.
Type string
Properties
use optional
Used by
Source
<attribute name="ejections-total" type="string" use="optional">
  <annotation>
    <documentation>Total number of ejections.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:stats-rugby-foul / @ejections-per-game
Namespace No namespace
Annotations
Average number of ejections recieved per match.
Type string
Properties
use optional
Used by
Source
<attribute name="ejections-per-game" type="string" use="optional">
  <annotation>
    <documentation>Average number of ejections recieved per match.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:time-adjustment-rugby / @period-extra-time-added
Namespace No namespace
Annotations
How many minutes the referee has decided to add to the period.
Type string
Properties
use optional
Used by
Source
<attribute name="period-extra-time-added" type="string" use="optional">
  <annotation>
    <documentation>How many minutes the referee has decided to add to the period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:time-adjustment-rugby / @period-extra-time-elapsed
Namespace No namespace
Annotations
How much time exactly MMSS that was actually elapsed in the period.
Type string
Properties
use optional
Used by
Source
<attribute name="period-extra-time-elapsed" type="string" use="optional">
  <annotation>
    <documentation>How much time exactly MMSS that was actually elapsed in the period.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-foul / @fouling-team-idref
Namespace No namespace
Annotations
idref pointing to the team causing the foul.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="fouling-team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team causing the foul.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-foul / @fouling-player-idref
Namespace No namespace
Annotations
idref pointing to the player causing the foul.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="fouling-player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player causing the foul.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-foul / @fouled-team-idref
Namespace No namespace
Annotations
idref pointing to the team beeing fouled.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="fouled-team-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the team beeing fouled.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-foul / @fouled-player-idref
Namespace No namespace
Annotations
idref pointing to the player beeing fouled.
Type IDREF
Properties
use optional
Used by
Source
<attribute name="fouled-player-idref" type="IDREF" use="optional">
  <annotation>
    <documentation>idref pointing to the player beeing fouled.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-foul / @foul-name
Namespace No namespace
Annotations
The name of the foul was committed. External controlled vocabulary: sportsml-vocabulary-specific-rugby.foul-name
Type string
Properties
use optional
Used by
Source
<attribute name="foul-name" type="string" use="optional">
  <annotation>
    <documentation>The name of the foul was committed. External controlled vocabulary: sportsml-vocabulary-specific-rugby.foul-name</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-foul / @foul-result
Namespace No namespace
Annotations
External controlled vocabulary: sportsml-vocabulary-specific-rugby.foul-result
Type string
Properties
use optional
Used by
Source
<attribute name="foul-result" type="string" use="optional">
  <annotation>
    <documentation>External controlled vocabulary: sportsml-vocabulary-specific-rugby.foul-result</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute sportsml:action-rugby-foul / @comment
Namespace No namespace
Annotations
Textual comment regarding the penalty.
Type string
Properties
use optional
Used by
Source
<attribute name="comment" type="string" use="optional">
  <annotation>
    <documentation>Textual comment regarding the penalty.</documentation>
  </annotation>
</attribute>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
Attribute Group sportsml:eventStateRugby
Namespace http://iptc.org/std/SportsML/2008-04-01/
Diagram
Diagram sportsml-specific-rugby_xsd.tmp#eventStateRugby_period-value sportsml-specific-rugby_xsd.tmp#eventStateRugby_period-time-elapsed sportsml-specific-rugby_xsd.tmp#eventStateRugby_minutes-elapsed sportsml-specific-rugby_xsd.tmp#eventStateRugby_period-minute-elapsed sportsml-specific-rugby_xsd.tmp#eventStateRugby_period-time-remaining
Used by
Attributes
QName Type Use Annotation
minutes-elapsed string optional
Number of minutes that have elapsed since the beginning of the game.
period-minute-elapsed string optional
The time elapsed, but only given as whole minutes.
period-time-elapsed string optional
Detailed time MMSS that has elapsed.
period-time-remaining string optional
Detailed time in MMSS format showing remaining time of period.
period-value string optional
Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)
Source
<attributeGroup name="eventStateRugby">
  <attribute name="period-value" type="string" use="optional">
    <annotation>
      <documentation>Identifier for which period of a game. (1, 2 for first and second halfs, 3 for first overtime, etc.)</documentation>
    </annotation>
  </attribute>
  <attribute name="period-time-elapsed" type="string" use="optional">
    <annotation>
      <documentation>Detailed time MMSS that has elapsed.</documentation>
    </annotation>
  </attribute>
  <attribute name="minutes-elapsed" type="string" use="optional">
    <annotation>
      <documentation>Number of minutes that have elapsed since the beginning of the game.</documentation>
    </annotation>
  </attribute>
  <attribute name="period-minute-elapsed" type="string" use="optional">
    <annotation>
      <documentation>The time elapsed, but only given as whole minutes.</documentation>
    </annotation>
  </attribute>
  <attribute name="period-time-remaining" type="string" use="optional">
    <annotation>
      <documentation>Detailed time in MMSS format showing remaining time of period.</documentation>
    </annotation>
  </attribute>
</attributeGroup>
Schema location http://www.iptc.org/std/SportsML/2.0/specification/schema/sportsml-specific-rugby.xsd
