Included schema NAR_1.3-spec-Framework-Core.xsd
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
News Architecture (NAR) 1.3 for IPTC G2-Standards - Framework XML Schema, document version 3
Date of creation of this XML Schema version: 2008-10-17
Date of creation of this XML Schema document version: 2009-02-09
Schema created for the IPTC by Jay Cousins, RivCom Ltd (jay.cousins@rivcom.com),  Ulf Wingstedt, CNet Svenska AB (ulf.wingstedt@cnet.se)
Schema maintained for the IPTC by Laurent Le Meur (AFP) + Michael Steidl (IPTC)

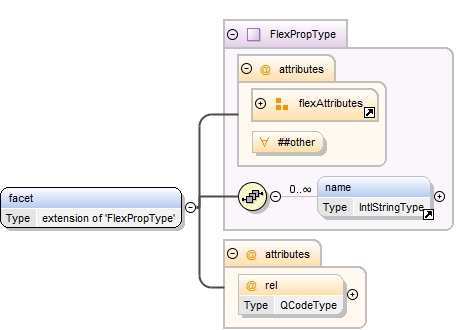

NAR 1.3r3: facet type changed from TypedQualPropType to FlexPropType (erratum)
Properties
attribute form default: unqualified
element form default: qualified
version: 1.3
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

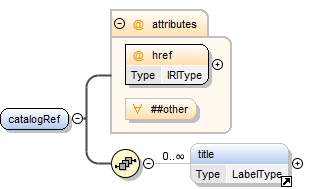

Element AnyItemType/catalogRef
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A reference to a remote catalog. A hyperlink to a set of scheme alias declarations.
Diagram
Diagram NewsItem1.tmp#id14 NewsItem1.tmp#id6
Properties
content: complex
Model title*
Children title
Instance
<catalogRef href="">
  <title dir="" xml:lang="" role="">{0,unbounded}</title>
</catalogRef>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
href IRIType required
A hyperlink to a remote Catalog.
Source
<xs:element name="catalogRef">
  <xs:annotation>
    <xs:documentation>A reference to a remote catalog. A hyperlink to a set of scheme alias declarations.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>A short natural language name for the catalog.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="href" type="IRIType" use="required">
      <xs:annotation>
        <xs:documentation>A hyperlink to a remote Catalog.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax">
      <xs:annotation>
        <xs:documentation>Any other attributes from other namespaces.</xs:documentation>
      </xs:annotation>
    </xs:anyAttribute>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

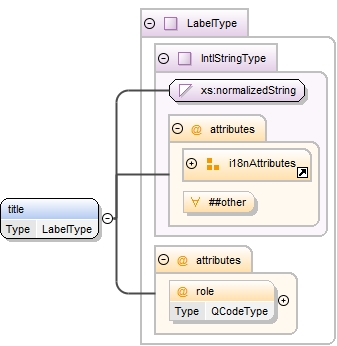

Element title
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A short, natural-language name
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id8 NewsItem1.tmp#id12 NewsItem1.tmp#id7

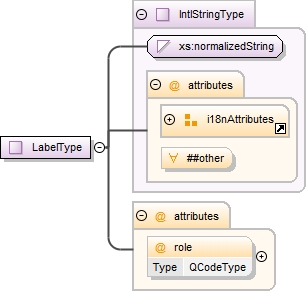

Type LabelType
Type hierarchy
Properties
content: complex
Used by
Elements AnyItemType/catalogRef, catalog

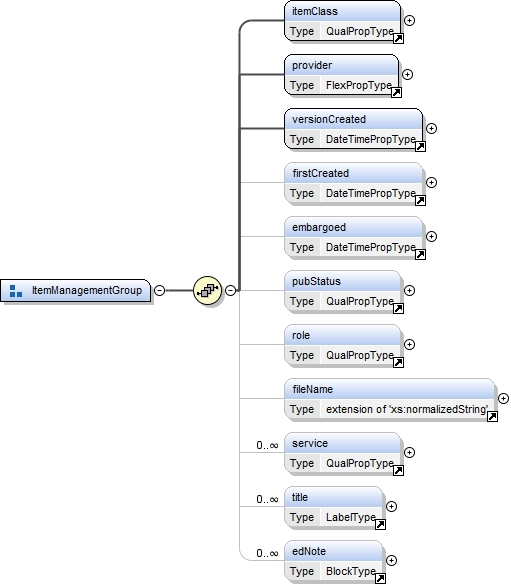

Element Group ItemManagementGroup

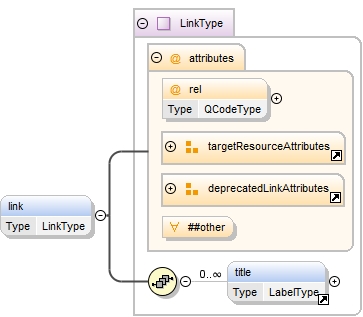

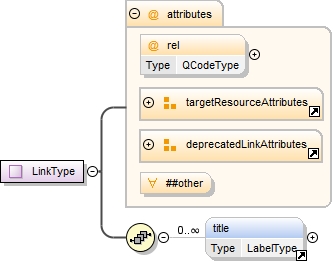

Complex Type LinkType
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the label.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="title" type="LabelType">
  <xs:annotation>
    <xs:documentation>A short, natural-language name</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

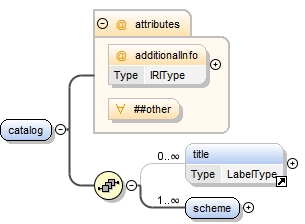

Element catalog
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A local or remote catalog.
Diagram
Diagram NewsItem1.tmp#id20 NewsItem1.tmp#id6 NewsItem1.tmp#id17
Properties
content: complex
Used by
Complex Type AnyItemType
Element newsItem
Model title* , scheme+
Children scheme, title
Instance
<catalog additionalInfo="">
  <title dir="" xml:lang="" role="">{0,unbounded}</title>
  <scheme alias="" uri="">{1,unbounded}</scheme>
</catalog>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
additionalInfo IRIType optional
A pointer to some additional information about the Catalog, and especially its evolution and latest version.
Source
<xs:element name="catalog">
  <xs:annotation>
    <xs:documentation>A local or remote catalog.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="title" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>A short natural language name for the Catalog.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="scheme" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>A scheme alias-to-URI mapping.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:attribute name="alias" type="xs:NCName" use="required">
            <xs:annotation>
              <xs:documentation>A short string used by the provider as a replacement for a scheme URI.</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="uri" type="IRIType" use="required">
            <xs:annotation>
              <xs:documentation>The URI which identifies the scheme.</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:anyAttribute namespace="##other" processContents="lax"/>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="additionalInfo" type="IRIType">
      <xs:annotation>
        <xs:documentation>A pointer to some additional information about the Catalog, and especially its evolution and latest version.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
    <!-- EV-NAR-1.3.7: add @additionalInfo to catalog-->
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element catalog/scheme
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A scheme alias-to-URI mapping.
Diagram
Diagram NewsItem1.tmp#id18 NewsItem1.tmp#id19
Properties
content: complex
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
alias xs:NCName required
A short string used by the provider as a replacement for a scheme URI.
uri IRIType required
The URI which identifies the scheme.
Source
<xs:element name="scheme" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>A scheme alias-to-URI mapping.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute name="alias" type="xs:NCName" use="required">
      <xs:annotation>
        <xs:documentation>A short string used by the provider as a replacement for a scheme URI.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="uri" type="IRIType" use="required">
      <xs:annotation>
        <xs:documentation>The URI which identifies the scheme.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

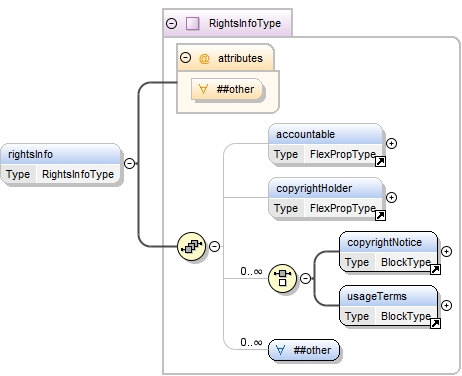

Element AnyItemType/rightsInfo
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Expression of rights to be applied to content
Diagram
Diagram NewsItem1.tmp#id23 NewsItem1.tmp#id30 NewsItem1.tmp#id31 NewsItem1.tmp#id35 NewsItem1.tmp#id22

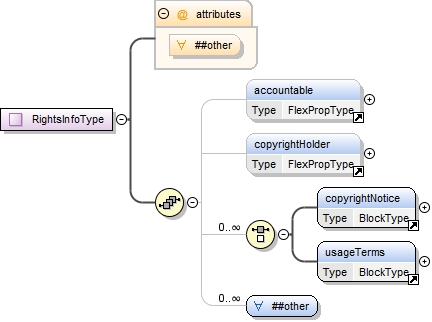

Type RightsInfoType
Properties
content: complex
minOccurs: 0
Model accountable{0,1} , copyrightHolder{0,1} , (copyrightNotice | usageTerms) , ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children accountable, copyrightHolder, copyrightNotice, usageTerms
Instance
<rightsInfo>
  <accountable literal="" qcode="" type="">{0,1}</accountable>
  <copyrightHolder literal="" qcode="" type="">{0,1}</copyrightHolder>
</rightsInfo>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="rightsInfo" type="RightsInfoType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Expression of rights to be applied to content</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

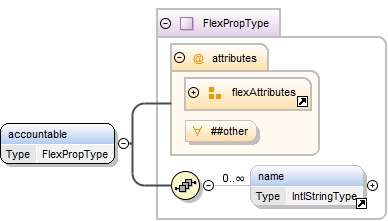

Element accountable
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An individual accountable for the content in legal terms.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24

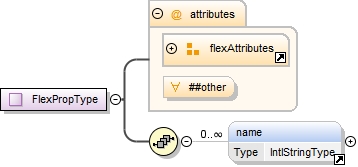

Type FlexPropType
Properties
content: complex
Used by
Complex Type RightsInfoType
Model name*
Children name
Instance
<accountable literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</accountable>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'

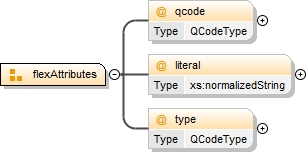

literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="accountable" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>An individual accountable for the content in legal terms.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

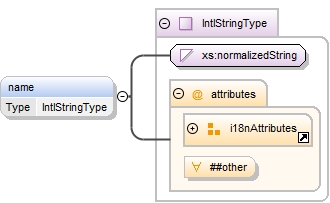

Element name
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A natural language name for the concept.
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id8

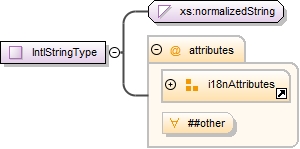

Type IntlStringType
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'

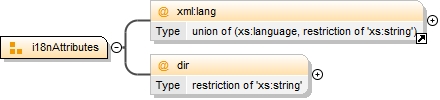

dir restriction of xs:string optional
The directionality of textual content.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="name" type="IntlStringType">
  <xs:annotation>
    <xs:documentation>A natural language name for the concept.</xs:documentation>
  </xs:annotation>
  <!-- rev3: name, definition, note and facet made global -->
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

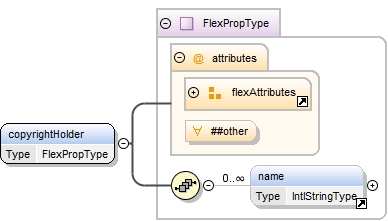

Element copyrightHolder
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The person or organisation claiming the intellectual property for the content.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Complex Type RightsInfoType
Model name*
Children name
Instance
<copyrightHolder literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</copyrightHolder>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="copyrightHolder" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>The person or organisation claiming the intellectual property for the content.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element copyrightNotice
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Any necessary copyright notice for claiming the intellectual property for the content.
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id34 NewsItem1.tmp#id33 NewsItem1.tmp#id32

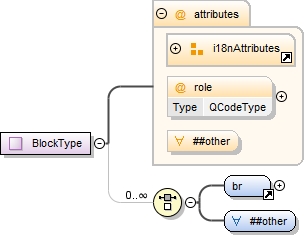

Type BlockType
Properties
content: complex
mixed: true
Used by
Complex Type RightsInfoType
Element objectDetails
Model br | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children br
Instance
<copyrightNotice dir="" xml:lang="" role="">
  <br>{1,1}</br>
</copyrightNotice>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the block.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="copyrightNotice" type="BlockType">
  <xs:annotation>
    <xs:documentation>Any necessary copyright notice for claiming the intellectual property for the content.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element br
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A line break
Diagram
Diagram
Properties
content: complex
Used by
Complex Type BlockType

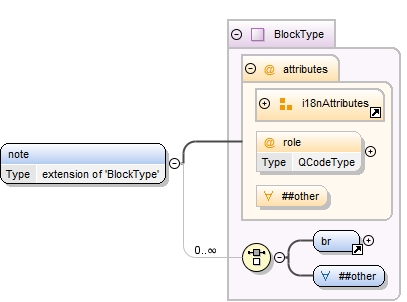

Elements definition, note
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="br">
  <xs:annotation>
    <xs:documentation>A line break</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

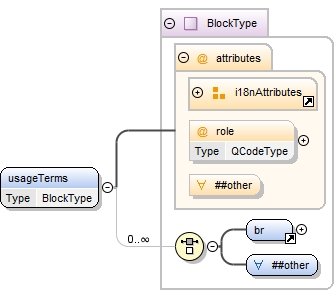

Element usageTerms
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A natural-language statement about the usage terms pertaining to the content.
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id34 NewsItem1.tmp#id33 NewsItem1.tmp#id32
Type BlockType
Properties
content: complex
mixed: true
Used by
Complex Type RightsInfoType
Model br | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children br
Instance
<usageTerms dir="" xml:lang="" role="">
  <br>{1,1}</br>
</usageTerms>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the block.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="usageTerms" type="BlockType">
  <xs:annotation>
    <xs:documentation>A natural-language statement about the usage terms pertaining to the content.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

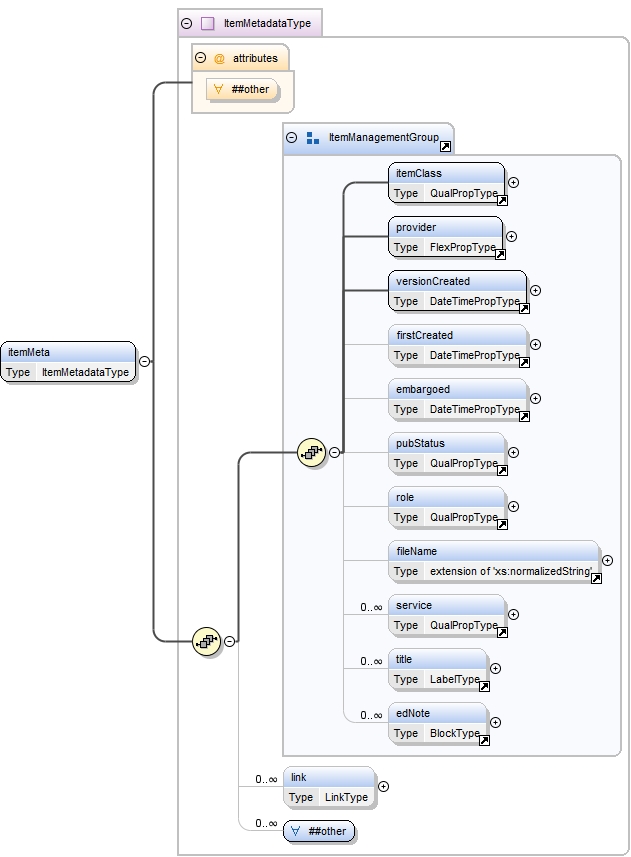

Element AnyItemType/itemMeta
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A set of properties directly associated with the Item
Diagram
Diagram NewsItem1.tmp#id39 NewsItem1.tmp#id43 NewsItem1.tmp#id44 NewsItem1.tmp#id46 NewsItem1.tmp#id47 NewsItem1.tmp#id48 NewsItem1.tmp#id49 NewsItem1.tmp#id50 NewsItem1.tmp#id51 NewsItem1.tmp#id6 NewsItem1.tmp#id52 NewsItem1.tmp#id38 NewsItem1.tmp#id53 NewsItem1.tmp#id37
Type ItemMetadataType
Properties
content: complex
Model itemClass , provider , versionCreated , firstCreated{0,1} , embargoed{0,1} , pubStatus{0,1} , role{0,1} , fileName{0,1} , service* , title* , edNote* , link* , ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children edNote, embargoed, fileName, firstCreated, itemClass, link, provider, pubStatus, role, service, title, versionCreated
Instance
<itemMeta>
  <itemClass qcode="">{1,1}</itemClass>
  <provider literal="" qcode="" type="">{1,1}</provider>
  <versionCreated>{1,1}</versionCreated>
  <firstCreated>{0,1}</firstCreated>
  <embargoed>{0,1}</embargoed>
  <pubStatus qcode="">{0,1}</pubStatus>
  <role qcode="">{0,1}</role>
  <fileName>{0,1}</fileName>
  <service qcode="">{0,unbounded}</service>
  <title dir="" xml:lang="" role="">{0,unbounded}</title>
  <edNote dir="" xml:lang="" role="">{0,unbounded}</edNote>
  <link contenttype="" format="" guidref="" href="" hreftype="" rel="" residref="" size="" version="">{0,unbounded}</link>
</itemMeta>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="itemMeta" type="ItemMetadataType">
  <xs:annotation>
    <xs:documentation>A set of properties directly associated with the Item</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element itemClass
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The nature of the item, set in accordance with the structure of its content.
Diagram
Diagram NewsItem1.tmp#id42 NewsItem1.tmp#id41 NewsItem1.tmp#id25 NewsItem1.tmp#id40
Type QualPropType
Type hierarchy
Properties
content: complex
Used by
Element Group ItemManagementGroup
Model name*
Children name
Instance
<itemClass qcode="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</itemClass>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
qcode QCodeType required
A qualified code which identifies a concept.
Source
<xs:element name="itemClass" type="QualPropType">
  <xs:annotation>
    <xs:documentation>The nature of the item, set in accordance with the structure of its content.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element provider
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The party (person or organisation) responsible for the management of the Item.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Element Group ItemManagementGroup
Model name*
Children name
Instance
<provider literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</provider>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="provider" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>The party (person or organisation) responsible for the management of the Item.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element versionCreated
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The date and time on which the current version of the Item was created.
Diagram
Diagram NewsItem1.tmp#id45
Type DateTimePropType
Properties
content: complex
Used by
Element Group ItemManagementGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="versionCreated" type="DateTimePropType">
  <xs:annotation>
    <xs:documentation>The date and time on which the current version of the Item was created.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element firstCreated
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The date and time on which the first version of the Item was created.
Diagram
Diagram NewsItem1.tmp#id45
Type DateTimePropType
Properties
content: complex
Used by
Element Group ItemManagementGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="firstCreated" type="DateTimePropType">
  <xs:annotation>
    <xs:documentation>The date and time on which the first version of the Item was created.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

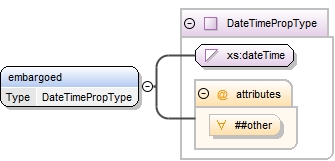

Element embargoed
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The date and time before which all versions of the Item are embargoed. If absent, the Item is not embargoed.
Diagram
Diagram NewsItem1.tmp#id45
Type DateTimePropType
Properties
content: complex
Used by
Element Group ItemManagementGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="embargoed" type="DateTimePropType">
  <xs:annotation>
    <xs:documentation>The date and time before which all versions of the Item are embargoed. If absent, the Item is not embargoed.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

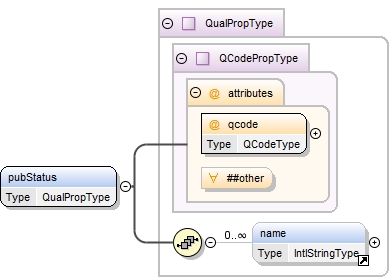

Element pubStatus
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The publishing status of the Item, its value is "usable" by default.
Diagram
Diagram NewsItem1.tmp#id42 NewsItem1.tmp#id41 NewsItem1.tmp#id25 NewsItem1.tmp#id40
Type QualPropType
Type hierarchy
Properties
content: complex
Used by
Element Group ItemManagementGroup
Model name*
Children name
Instance
<pubStatus qcode="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</pubStatus>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
qcode QCodeType required
A qualified code which identifies a concept.
Source
<xs:element name="pubStatus" type="QualPropType">
  <xs:annotation>
    <xs:documentation>The publishing status of the Item, its value is "usable" by default.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element role
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The role of the Item in the editorial workflow.
Diagram
Diagram NewsItem1.tmp#id42 NewsItem1.tmp#id41 NewsItem1.tmp#id25 NewsItem1.tmp#id40
Type QualPropType
Type hierarchy
Properties
content: complex
Used by
Element Group ItemManagementGroup
Model name*
Children name
Instance
<role qcode="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</role>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
qcode QCodeType required
A qualified code which identifies a concept.
Source
<xs:element name="role" type="QualPropType">
  <xs:annotation>
    <xs:documentation>The role of the Item in the editorial workflow.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

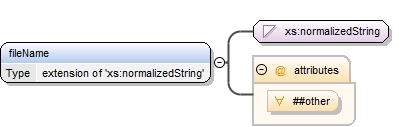

Element fileName
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The recommended file name for this Item.
Diagram
Diagram
Type extension of xs:normalizedString
Properties
content: complex
Used by
Element Group ItemManagementGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="fileName">
  <xs:annotation>
    <xs:documentation>The recommended file name for this Item.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:normalizedString">
        <xs:anyAttribute namespace="##other" processContents="lax"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element service
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An editorial service to which an item is assigned by its provider.
Diagram
Diagram NewsItem1.tmp#id42 NewsItem1.tmp#id41 NewsItem1.tmp#id25 NewsItem1.tmp#id40

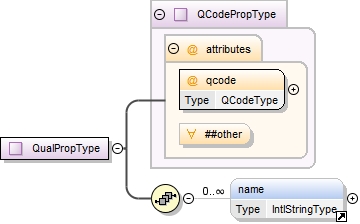

Type QualPropType
Type hierarchy
Properties
content: complex
Used by
Element Group ItemManagementGroup
Model name*
Children name
Instance
<service qcode="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</service>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
qcode QCodeType required
A qualified code which identifies a concept.
Source
<xs:element name="service" type="QualPropType">
  <xs:annotation>
    <xs:documentation>An editorial service to which an item is assigned by its provider.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element edNote
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A note addressed to the editorial people receiving the Item.
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id34 NewsItem1.tmp#id33 NewsItem1.tmp#id32
Type BlockType
Properties
content: complex
mixed: true
Used by
Element Group ItemManagementGroup
Model br | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children br
Instance
<edNote dir="" xml:lang="" role="">
  <br>{1,1}</br>
</edNote>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the block.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="edNote" type="BlockType">
  <xs:annotation>
    <xs:documentation>A note addressed to the editorial people receiving the Item.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element ItemMetadataType/link
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A link from the current Item to a target Item or Web resource
Diagram
Diagram NewsItem1.tmp#id55 NewsItem1.tmp#id56 NewsItem1.tmp#id63 NewsItem1.tmp#id6 NewsItem1.tmp#id54
Type LinkType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model title*
Children title
Instance
<link contenttype="" format="" guidref="" href="" hreftype="" rel="" residref="" size="" version="">
  <title dir="" xml:lang="" role="">{0,unbounded}</title>
</link>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
contenttype xs:string optional
The IANA (Internet Assigned Numbers Authority) MIME type of the target resource.
format QCodeType optional
A refinement of a generic content type (i.e. IANA MIME type)
guidref xs:string optional

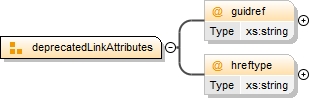

The use of this attribute is DEPRECATED, use @residref instead. (was: The globally unique Identifier of the target Item.)
href IRIType optional
The locator of the target resource.
hreftype xs:string optional
The use of this attribute is DEPRECATED, use @contenttype instead. (was: An IANA MIME type.)
rel QCodeType optional
The identifier of the relationship between the current Item and the target resource.
residref xs:string optional
The  provider’s identifier of the target resource.
size xs:nonNegativeInteger optional
The size in bytes of the target resource.
version xs:positiveInteger optional
The version of the target resource. By default, the latest revision is retrieved when the link is activated.
Source
<xs:element name="link" type="LinkType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>A link from the current Item to a target Item or Web resource</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

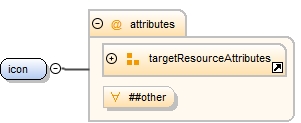

Element icon
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An iconic visual identification of the content
Diagram
Diagram NewsItem1.tmp#id56
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
contenttype xs:string optional
The IANA (Internet Assigned Numbers Authority) MIME type of the target resource.
format QCodeType optional
A refinement of a generic content type (i.e. IANA MIME type)
href IRIType optional
The locator of the target resource.
residref xs:string optional
The  provider’s identifier of the target resource.
size xs:nonNegativeInteger optional
The size in bytes of the target resource.
version xs:positiveInteger optional
The version of the target resource. By default, the latest revision is retrieved when the link is activated.
Source
<xs:element name="icon">
  <xs:annotation>
    <xs:documentation>An iconic visual identification of the content</xs:documentation>
  </xs:annotation>
  <xs:complexType>

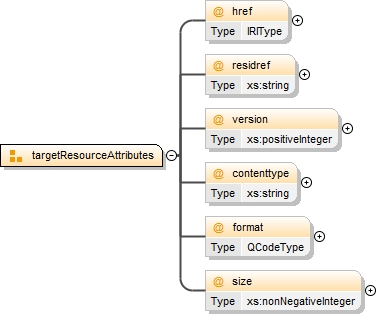

    <xs:attributeGroup ref="targetResourceAttributes"/>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

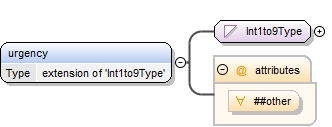

Element urgency
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The editorial urgency of the content.
Diagram
Diagram NewsItem1.tmp#id75
Type extension of Int1to9Type
Type hierarchy
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="urgency">
  <xs:annotation>
    <xs:documentation>The editorial urgency of the content.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="Int1to9Type">
        <xs:anyAttribute namespace="##other" processContents="lax"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

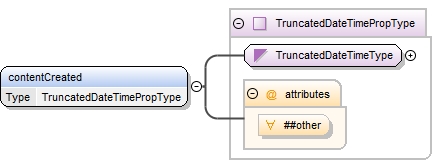

Element contentCreated
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The date (and optionally the time) on which the content was created.
Diagram
Diagram NewsItem1.tmp#id78 NewsItem1.tmp#id77

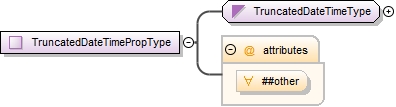

Type TruncatedDateTimePropType
Type hierarchy
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="contentCreated" type="TruncatedDateTimePropType">
  <xs:annotation>
    <xs:documentation>The date (and optionally the time) on which the content was created.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

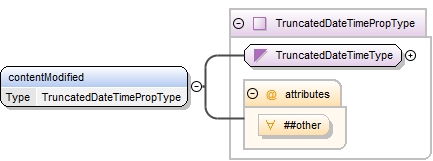

Element contentModified
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The date (and optionally the time) on which the content was last modified.
Diagram
Diagram NewsItem1.tmp#id78 NewsItem1.tmp#id77
Type TruncatedDateTimePropType
Type hierarchy
Properties
content: complex
Used by
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="contentModified" type="TruncatedDateTimePropType">
  <xs:annotation>
    <xs:documentation>The date (and optionally the time) on which the content was last modified.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element located
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The location from which the content originates.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<located literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</located>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="located" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>The location from which the content originates.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element infoSource
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A party (person or organisation) which originated some information used to create or enhance the content.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<infoSource literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</infoSource>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="infoSource" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>A party (person or organisation) which originated some information used to create or enhance the content.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element creator
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A party (person or organisation) which created the resource.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<creator literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</creator>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="creator" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>A party (person or organisation) which created the resource.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element contributor
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A party (person or organisation) which modified or enhanced the content, preferably the name of a person.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<contributor literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</contributor>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="contributor" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>A party (person or organisation) which modified or enhanced the content, preferably the name of a person.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element audience
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An intended audience for the content.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<audience literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</audience>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="audience" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>An intended audience for the content.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

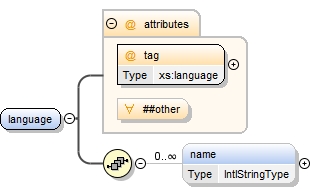

Element language
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A language used by the news content
Diagram
Diagram NewsItem1.tmp#id88 NewsItem1.tmp#id87
Properties
content: complex
Used by
Element Group DescriptiveMetadataGroup
Model name*
Children name
Instance
<language tag="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</language>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
tag xs:language required
The language tag. Values must be valid BCP 47 language tags
Source
<xs:element name="language">
  <xs:annotation>
    <xs:documentation>A language used by the news content</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="IntlStringType" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>A name for a concept assigned as property value.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="tag" type="xs:language" use="required">
      <xs:annotation>
        <!-- v1.2 : modification of the definition-->
        <xs:documentation>The language tag. Values must be valid BCP 47 language tags</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element language/name
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A name for a concept assigned as property value.
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id8
Type IntlStringType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="name" type="IntlStringType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>A name for a concept assigned as property value.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

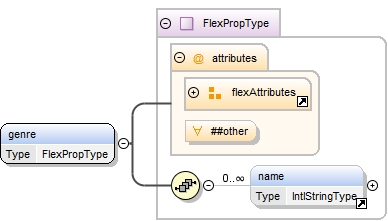

Element genre
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A nature, intellectual or journalistic form of the content
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Element Group DescriptiveMetadataGroup
Model name*
Children name
Instance
<genre literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</genre>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="genre" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>A nature, intellectual or journalistic form of the content</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element subject
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An important topic of the content; what the content is about
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Element Group DescriptiveMetadataGroup
Model name*
Children name
Instance
<subject literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</subject>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="subject" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>An important topic of the content; what the content is about</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

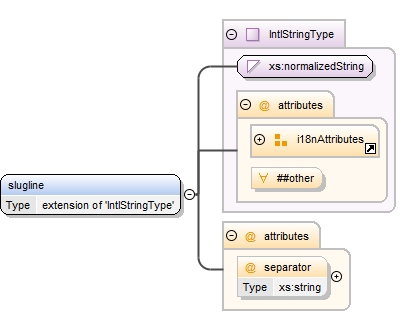

Element slugline
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A sequence of tokens associated with the content. The interpretation is provider specific
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id8 NewsItem1.tmp#id92
Type extension of IntlStringType
Type hierarchy
Properties
content: complex
Used by
Element Group DescriptiveMetadataGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
separator xs:string optional
The character string acting as a separator between the tokens in the slugline.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="slugline">
  <xs:annotation>
    <xs:documentation>A sequence of tokens associated with the content. The interpretation is provider specific</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="IntlStringType">
        <xs:attribute name="separator" type="xs:string">
          <xs:annotation>
            <xs:documentation>The character string acting as a separator between the tokens in the slugline.</xs:documentation>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element headline
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A brief and snappy introduction to the news content, designed to catch the reader's attention
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id8 NewsItem1.tmp#id12 NewsItem1.tmp#id7
Type LabelType
Type hierarchy
Properties
content: complex
Used by
Element Group DescriptiveMetadataGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the label.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="headline" type="LabelType">
  <xs:annotation>
    <xs:documentation>A brief and snappy introduction to the news content, designed to catch the reader's attention</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd

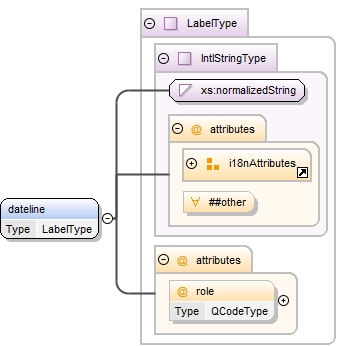

Element dateline
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A natural-language statement of the date and/or place of creation of the content
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id8 NewsItem1.tmp#id12 NewsItem1.tmp#id7
Type LabelType
Type hierarchy
Properties
content: complex
Used by
Element Group DescriptiveMetadataGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the label.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="dateline" type="LabelType">
  <xs:annotation>
    <xs:documentation>A natural-language statement of the date and/or place of creation of the content</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element by
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A natural-language statement about the creator (author, photographer etc.) of the content
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id8 NewsItem1.tmp#id12 NewsItem1.tmp#id7
Type LabelType
Type hierarchy
Properties
content: complex
Used by
Element Group DescriptiveMetadataGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the label.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="by" type="LabelType">
  <xs:annotation>
    <xs:documentation>A natural-language statement about the creator (author, photographer etc.) of the content</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element creditline
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A free-form expression of the credit(s) for the content
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id8
Type IntlStringType
Properties
content: complex
Used by
Element Group DescriptiveMetadataGroup
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="creditline" type="IntlStringType">
  <xs:annotation>
    <xs:documentation>A free-form expression of the credit(s) for the content</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element description
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A free-form textual description of the content of the item
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id34 NewsItem1.tmp#id33 NewsItem1.tmp#id32
Type BlockType
Properties
content: complex
mixed: true
Used by
Element Group DescriptiveMetadataGroup
Model br | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children br
Instance
<description dir="" xml:lang="" role="">
  <br>{1,1}</br>
</description>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the block.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="description" type="BlockType">
  <xs:annotation>
    <xs:documentation>A free-form textual description of the content of the item</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element created
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The date (and optionally the time) on which the resource was created.
Diagram
Diagram NewsItem1.tmp#id78 NewsItem1.tmp#id77
Type TruncatedDateTimePropType
Type hierarchy
Properties
content: complex
Used by
Element objectDetails
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="created" type="TruncatedDateTimePropType">
  <xs:annotation>
    <xs:documentation>The date (and optionally the time) on which the resource was created.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element concept
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A set of properties defining a concept
Diagram
Diagram NewsItem1.tmp#id135 NewsItem1.tmp#id141 NewsItem1.tmp#id25 NewsItem1.tmp#id142 NewsItem1.tmp#id143 NewsItem1.tmp#id144 NewsItem1.tmp#id147 NewsItem1.tmp#id148 NewsItem1.tmp#id149 NewsItem1.tmp#id150 NewsItem1.tmp#id146 NewsItem1.tmp#id152 NewsItem1.tmp#id174 NewsItem1.tmp#id179 NewsItem1.tmp#id186 NewsItem1.tmp#id193 NewsItem1.tmp#id151
Properties
content: complex
Model conceptId , type{0,1} , name+ , (definition | note | facet) , (sameAs | broader | narrower | related) , (personDetails | organisationDetails | geoAreaDetails | POIDetails | objectDetails) , ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children POIDetails, broader, conceptId, definition, facet, geoAreaDetails, name, narrower, note, objectDetails, organisationDetails, personDetails, related, sameAs, type
Instance
<concept>
  <conceptId created="" qcode="" retired="">{1,1}</conceptId>
  <type qcode="">{0,1}</type>
  <name dir="" xml:lang="">{1,unbounded}</name>
</concept>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="concept">
  <xs:annotation>
    <xs:documentation>A set of properties defining a concept</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="conceptId" type="ConceptIdType">
        <xs:annotation>
          <xs:documentation>The preferred unambiguous identifier for the concept.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="type" type="QualPropType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>The nature of the concept.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element ref="name" maxOccurs="unbounded"/>
      <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:element ref="definition"/>
        <xs:element ref="note"/>
        <xs:element ref="facet"/>
      </xs:choice>
      <xs:group ref="ConceptRelationshipsGroup"/>
      <xs:group ref="EntityDetailsGroup" minOccurs="0"/>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element concept/conceptId
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The preferred unambiguous identifier for the concept.
Diagram
Diagram NewsItem1.tmp#id137 NewsItem1.tmp#id138 NewsItem1.tmp#id140 NewsItem1.tmp#id136
Type ConceptIdType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
created DateOptTimeType optional
The date (and, optionally, the time) when the concept identifier was created.
qcode QCodeType required
retired DateOptTimeType optional
The date (and, optionally, the time) after which the concept identifier should not be applied as the value of a property anymore.
Source
<xs:element name="conceptId" type="ConceptIdType">
  <xs:annotation>
    <xs:documentation>The preferred unambiguous identifier for the concept.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element concept/type
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The nature of the concept.
Diagram
Diagram NewsItem1.tmp#id42 NewsItem1.tmp#id41 NewsItem1.tmp#id25 NewsItem1.tmp#id40
Type QualPropType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model name*
Children name
Instance
<type qcode="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</type>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
qcode QCodeType required
A qualified code which identifies a concept.
Source
<xs:element name="type" type="QualPropType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The nature of the concept.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element definition
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A natural language definition of the semantics of the concept. This definition is normative only for the scope of the use of this concept.
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id34 NewsItem1.tmp#id33 NewsItem1.tmp#id32
Type extension of BlockType
Type hierarchy
Properties
content: complex
mixed: true
Used by
Element concept
Model br | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children br
Instance
<definition dir="" xml:lang="" role="">
  <br>{1,1}</br>
</definition>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the block.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="definition">
  <xs:annotation>
    <xs:documentation>A natural language definition of the semantics of the concept. This definition is normative only for the scope of the use of this concept.</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:complexContent mixed="true">
      <xs:extension base="BlockType">
      </xs:extension>
    </xs:complexContent>
    <!-- NAR 1.2 erratum 2 correction: specify mixed content-->
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element note
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Additional natural language information about the concept.
Diagram
Diagram NewsItem1.tmp#id9 NewsItem1.tmp#id34 NewsItem1.tmp#id33 NewsItem1.tmp#id32
Type extension of BlockType
Type hierarchy
Properties
content: complex
mixed: true
Used by
Element concept
Complex Type ContactInfoType
Model br | ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children br
Instance
<note dir="" xml:lang="" role="">
  <br>{1,1}</br>
</note>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
role QCodeType optional
A refinement of the semantics of the block.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source
<xs:element name="note">
  <xs:annotation>
    <xs:documentation>Additional natural language information about the concept.</xs:documentation>
  </xs:annotation>
  <xs:complexType mixed="true">
    <xs:complexContent mixed="true">
      <xs:extension base="BlockType">
      </xs:extension>
    </xs:complexContent>
    <!-- NAR 1.2 erratum 2 correction: specify mixed content-->
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element facet
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A intrinsic property of the concept.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24 NewsItem1.tmp#id145
Type extension of FlexPropType
Type hierarchy
Properties
content: complex
Used by
Element concept
Model name*
Children name
Instance
<facet literal="" qcode="" rel="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</facet>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
rel QCodeType optional
The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="facet">
  <xs:annotation>
    <xs:documentation>A intrinsic property of the concept.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="FlexPropType">
        <xs:attribute name="rel" type="QCodeType">
          <xs:annotation>
            <xs:documentation>The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value.</xs:documentation>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element sameAs
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An identifier of a concept with equivalent semantics
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<sameAs literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</sameAs>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="sameAs" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>An identifier of a concept with equivalent semantics</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element broader
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An identifier of a more generic concept.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<broader literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</broader>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="broader" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>An identifier of a more generic concept.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element narrower
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An identifier of a more specific concept.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<narrower literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</narrower>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="narrower" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>An identifier of a more specific concept.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element related
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An identifier of a related concept, where the relationship is different from 'sameAs', 'broader' or 'narrower'.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Used by
Model name*
Children name
Instance
<related literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</related>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="related" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>An identifier of a related concept, where the relationship is different from 'sameAs', 'broader' or 'narrower'.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element personDetails
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A set of properties specific to a person
Diagram
Diagram NewsItem1.tmp#id153 NewsItem1.tmp#id154 NewsItem1.tmp#id155 NewsItem1.tmp#id156
Properties
content: complex
Used by
Element Group EntityDetailsGroup
Model born{0,1} , died{0,1} , (affiliation | contactInfo) , ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children affiliation, born, contactInfo, died
Instance
<personDetails>
  <born>{0,1}</born>
  <died>{0,1}</died>
</personDetails>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="personDetails">
  <xs:annotation>
    <xs:documentation>A set of properties specific to a person</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="born" type="TruncatedDateTimePropType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>The date the person was born.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="died" type="TruncatedDateTimePropType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>The date the person died.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:element name="affiliation" type="FlexPropType">
          <xs:annotation>
            <xs:documentation>An affiliation of the person with an organisation.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="contactInfo" type="ContactInfoType">
          <xs:annotation>
            <xs:documentation>Information how to contact the person.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:choice>
      <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
    <xs:anyAttribute namespace="##other" processContents="lax"/>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element personDetails/born
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The date the person was born.
Diagram
Diagram NewsItem1.tmp#id78 NewsItem1.tmp#id77
Type TruncatedDateTimePropType
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="born" type="TruncatedDateTimePropType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The date the person was born.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element personDetails/died
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
The date the person died.
Diagram
Diagram NewsItem1.tmp#id78 NewsItem1.tmp#id77
Type TruncatedDateTimePropType
Type hierarchy
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Source
<xs:element name="died" type="TruncatedDateTimePropType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The date the person died.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element personDetails/affiliation
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An affiliation of the person with an organisation.
Diagram
Diagram NewsItem1.tmp#id26 NewsItem1.tmp#id25 NewsItem1.tmp#id24
Type FlexPropType
Properties
content: complex
Model name*
Children name
Instance
<affiliation literal="" qcode="" type="">
  <name dir="" xml:lang="">{0,unbounded}</name>
</affiliation>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
literal xs:normalizedString optional
A free-text value assigned as property value.
qcode QCodeType optional
A qualified code which identifies a concept.
type QCodeType optional
The type of the concept assigned as controlled property value.
Source
<xs:element name="affiliation" type="FlexPropType">
  <xs:annotation>
    <xs:documentation>An affiliation of the person with an organisation.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element personDetails/contactInfo
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
Information how to contact the person.
Diagram
Diagram NewsItem1.tmp#id173 NewsItem1.tmp#id158 NewsItem1.tmp#id161 NewsItem1.tmp#id162 NewsItem1.tmp#id163 NewsItem1.tmp#id164 NewsItem1.tmp#id166 NewsItem1.tmp#id143 NewsItem1.tmp#id157
Type ContactInfoType
Properties
content: complex
Model (email | im | phone | fax | web | address | note) , ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children address, email, fax, im, note, phone, web
Instance
<contactInfo role="">
  <email role="">{1,1}</email>
  <im role="">{1,1}</im>
  <phone role="">{1,1}</phone>
  <fax role="">{1,1}</fax>
  <web role="">{1,1}</web>
  <address role="">{1,1}</address>
  <note dir="" xml:lang="" role="">{1,1}</note>
</contactInfo>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
role QCodeType optional
A refinement of the semantics of a contact information.
Source
<xs:element name="contactInfo" type="ContactInfoType">
  <xs:annotation>
    <xs:documentation>Information how to contact the person.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element ContactInfoType/email
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An email address.
Diagram
Diagram NewsItem1.tmp#id160 NewsItem1.tmp#id159
Type ElectronicAddressType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
role QCodeType optional
A refinement of the semantics of the electronic address.
Source
<xs:element name="email" type="ElectronicAddressType">
  <xs:annotation>
    <xs:documentation>An email address.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element ContactInfoType/im
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
An instant messaging address.
Diagram
Diagram NewsItem1.tmp#id160 NewsItem1.tmp#id159
Type ElectronicAddressType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
role QCodeType optional
A refinement of the semantics of the electronic address.
Source
<xs:element name="im" type="ElectronicAddressType">
  <xs:annotation>
    <xs:documentation>An instant messaging address.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element ContactInfoType/phone
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A phone number, preferred in an international format.
Diagram
Diagram NewsItem1.tmp#id160 NewsItem1.tmp#id159
Type ElectronicAddressType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
role QCodeType optional
A refinement of the semantics of the electronic address.
Source
<xs:element name="phone" type="ElectronicAddressType">
  <xs:annotation>
    <xs:documentation>A phone number, preferred in an international format.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/NewsML-G2_2.2/specification/NAR_1.3-spec-Framework-Core.xsd
Element ContactInfoType/fax
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations
A fax number, preferred in an international format.
Diagram
Diagram NewsItem1.tmp#id160 NewsItem1.tmp#id159
Type ElectronicAddressType
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
