Element harmonic/natural
Namespace No namespace
Annotations

The natural element indicates that this is a natural harmonic. These are usually notated at base pitch rather than sounding pitch.
Diagram
Diagram musicxml53.tmp#id207
Type empty
Properties
content: complex
Source

<xs:element name="natural" type="empty">
  <xs:annotation>
    <xs:documentation>The natural element indicates that this is a natural harmonic. These are usually notated at base pitch rather than sounding pitch.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element harmonic/artificial
Namespace No namespace
Annotations

The artificial element indicates that this is an artificial harmonic.
Diagram
Diagram musicxml53.tmp#id207
Type empty
Properties
content: complex
Source

<xs:element name="artificial" type="empty">
  <xs:annotation>
    <xs:documentation>The artificial element indicates that this is an artificial harmonic.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element harmonic/base-pitch
Namespace No namespace
Annotations

The base pitch is the pitch at which the string is played before touching to create the harmonic.
Diagram
Diagram musicxml53.tmp#id207
Type empty
Properties
content: complex
Source

<xs:element name="base-pitch" type="empty">
  <xs:annotation>
    <xs:documentation>The base pitch is the pitch at which the string is played before touching to create the harmonic.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element harmonic/touching-pitch
Namespace No namespace
Annotations

The touching-pitch is the pitch at which the string is touched lightly to produce the harmonic.
Diagram
Diagram musicxml53.tmp#id207
Type empty
Properties
content: complex
Source

<xs:element name="touching-pitch" type="empty">
  <xs:annotation>
    <xs:documentation>The touching-pitch is the pitch at which the string is touched lightly to produce the harmonic.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Element harmonic/sounding-pitch
Namespace No namespace
Annotations

The sounding-pitch is the pitch which is heard when playing the harmonic.
Diagram
Diagram musicxml53.tmp#id207
Type empty
Properties
content: complex
Source

<xs:element name="sounding-pitch" type="empty">
  <xs:annotation>
    <xs:documentation>The sounding-pitch is the pitch which is heard when playing the harmonic.</xs:documentation>
  </xs:annotation>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
Complex Type harmonic
Namespace No namespace
Annotations

The harmonic type indicates natural and artificial harmonics. Allowing the type of pitch to be specified, combined with controls for appearance/playback differences, allows both the notation and the sound to be represented. Artificial harmonics can add a notated touching-pitch; artificial pinch harmonics will usually not notate a touching pitch. The attributes for the harmonic element refer to the use of the circular harmonic symbol, typically but not always used with natural harmonics.

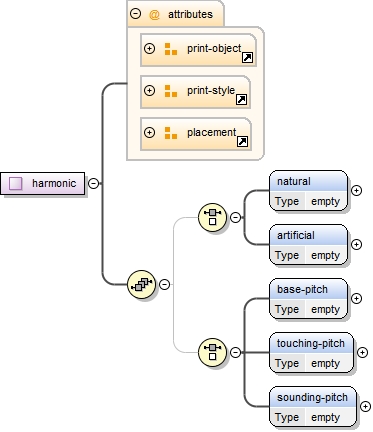

Diagram
Diagram musicxml4.tmp#id138 musicxml6.tmp#id142 musicxml7.tmp#id131 musicxml8.tmp#id696 musicxml8.tmp#id697 musicxml8.tmp#id698 musicxml8.tmp#id699 musicxml8.tmp#id700
Used by
Model (natural | artificial) , (base-pitch | touching-pitch | sounding-pitch)
Children artificial, base-pitch, natural, sounding-pitch, touching-pitch
Attributes
QName Type Fixed Default Use Annotation
color color optional
default-x tenths optional
default-y tenths optional
font-family comma-separated-text optional
font-size font-size optional
font-style font-style optional
font-weight font-weight optional
placement above-below optional
print-object yes-no optional
relative-x tenths optional
relative-y tenths optional
Source

<xs:complexType name="harmonic">
  <xs:annotation>
    <xs:documentation>The harmonic type indicates natural and artificial harmonics. Allowing the type of pitch to be specified, combined with controls for appearance/playback differences, allows both the notation and the sound to be represented. Artificial harmonics can add a notated touching-pitch; artificial pinch harmonics will usually not notate a touching pitch. The attributes for the harmonic element refer to the use of the circular harmonic symbol, typically but not always used with natural harmonics.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:choice minOccurs="0">
      <xs:element name="natural" type="empty">
        <xs:annotation>
          <xs:documentation>The natural element indicates that this is a natural harmonic. These are usually notated at base pitch rather than sounding pitch.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="artificial" type="empty">
        <xs:annotation>
          <xs:documentation>The artificial element indicates that this is an artificial harmonic.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
    <xs:choice minOccurs="0">
      <xs:element name="base-pitch" type="empty">
        <xs:annotation>
          <xs:documentation>The base pitch is the pitch at which the string is played before touching to create the harmonic.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="touching-pitch" type="empty">
        <xs:annotation>
          <xs:documentation>The touching-pitch is the pitch at which the string is touched lightly to produce the harmonic.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="sounding-pitch" type="empty">
        <xs:annotation>
          <xs:documentation>The sounding-pitch is the pitch which is heard when playing the harmonic.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
  </xs:sequence>
  <xs:attributeGroup ref="print-object"/>
  <xs:attributeGroup ref="print-style"/>
  <xs:attributeGroup ref="placement"/>
</xs:complexType>
Schema location file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
