Schema documentation for component display-step-octave

Showing:

Annotations

Diagrams

Facets

Properties

Source

Used by

Element display-step-octave/display-step

Namespace

No namespace

Diagram

Type

step

Properties

content:

simple

Facets

enumeration

A, B, C, D, E, F, G

Source

<xs:element name="display-step" type="step"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Element display-step-octave/display-octave

Namespace

No namespace

Diagram

Type

octave

Properties

content:

simple

Facets

maxInclusive	9
minInclusive	0

Source

<xs:element name="display-octave" type="octave"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Complex Type display-step-octave

Namespace

No namespace

Annotations

The display-step-octave type contains the sequence of elements used by both the rest and unpitched elements. This group is used to place rests and unpitched elements on the staff without implying that these elements have pitch. Positioning follows the current clef. If percussion clef is used, the display-step and display-octave elements are interpreted as if in treble clef, with a G in octave 4 on line 2. If not present, the note is placed on the middle line of the staff, generally used for one-line staffs.

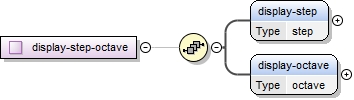

Diagram

Used by

Elements

full-note/rest, full-note/unpitched

Model

display-step , display-octave

Children

display-octave, display-step

Source

<xs:complexType name="display-step-octave">
  <xs:annotation>
    <xs:documentation>The display-step-octave type contains the sequence of elements used by both the rest and unpitched elements. This group is used to place rests and unpitched elements on the staff without implying that these elements have pitch. Positioning follows the current clef. If percussion clef is used, the display-step and display-octave elements are interpreted as if in treble clef, with a G in octave 4 on line 2. If not present, the note is placed on the middle line of the staff, generally used for one-line staffs.</xs:documentation>
  </xs:annotation>
  <xs:sequence minOccurs="0">
    <xs:element name="display-step" type="step"/>
    <xs:element name="display-octave" type="octave"/>
  </xs:sequence>
</xs:complexType>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
