Main schema EventsML-G2_1.1-spec-ConceptItem-Power.xsd
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations

IPTC NAR 1.3 Concept Item extended for EventsML-G2 1.1, document version 4

Initial ConceptItem Schema created for the IPTC by Jay Cousins, RivCom Ltd (jay.cousins@rivcom.com) and Ulf Wingstedt, CNet Svenska AB (ulf.wingstedt@cnet.se)

Schema for EventsML-G2 created by Michael Steidl (IPTC)

Date of creation of this XML Schema: 2008-10-17

Date of creation of this file version: 2009-02-09
Properties
attribute form default: unqualified
element form default: qualified
version: 1.0
Schema location file:/C:/Users/mihai/Desktop/EventsML-G2_1.1/1.1/specification/EventsML-G2_1.1-spec-ConceptItem-Power.xsd
Element conceptItem
Namespace http://iptc.org/std/nar/2006-10-01/
Annotations

An Item containing information about a concept.
Diagram
Diagram ConceptItem0.tmp#id185 ConceptItem0.tmp#id186 ConceptItem0.tmp#id187 ConceptItem0.tmp#id188 ConceptItem0.tmp#id189 ConceptItem0.tmp#id22 ConceptItem0.tmp#id6 ConceptItem0.tmp#id46 ConceptItem0.tmp#id51 ConceptItem0.tmp#id144 ConceptItem0.tmp#id5 ConceptItem3.tmp#id190 ConceptItem0.tmp#id214 ConceptItem3.tmp#id217
Type extension of AnyItemType
Type hierarchy
Properties
content: complex
Model ANY element from namespace(s) 'http://www.w3.org/2000/09/xmldsig#' , (catalogRef | catalog) , rightsInfo* , itemMeta , contentMeta{0,1} , assert* , concept{0,1}
Children assert, catalog, catalogRef, concept, contentMeta, itemMeta, rightsInfo
Instance

<conceptItem conformance="core" dir="" guid="" xml:lang="" standard="" standardversion="" version="1">
  <catalogRef creator="" href="" id="" modified="">{1,1}</catalogRef>
  <catalog additionalInfo="" creator="" id="" modified="">{1,1}</catalog>
  <rightsInfo creator="" dir="" id="" idrefs="" xml:lang="" modified="" validfrom="" validto="">{0,unbounded}</rightsInfo>
  <itemMeta dir="" xml:lang="">{1,1}</itemMeta>
</conceptItem>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
conformance xs:string core optional
The conformance level with which the Item is conformant.
dir restriction of xs:string optional
The directionality of textual content.
guid xs:string required
The persistent, universally unique identifier common for all versions of the Item.
standard xs:string required
The IPTC standard with which the Item is conformant.
standardversion restriction of xs:string required
The major-minor version of the IPTC standard with which the Item is conformant.
version xs:positiveInteger 1 optional
The version of the Item.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<xs:element name="conceptItem">
  <xs:annotation>
    <xs:documentation>An Item containing information about a concept.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="AnyItemType">
        <xs:sequence>
          <xs:element name="contentMeta" type="ContentMetadataType" minOccurs="0"/>
          <xs:element ref="assert" minOccurs="0" maxOccurs="unbounded"/>
          <xs:element name="concept" type="ConceptWEventType" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/C:/Users/mihai/Desktop/EventsML-G2_1.1/1.1/specification/EventsML-G2_1.1-spec-ConceptItem-Power.xsd
Element conceptItem/contentMeta
Namespace http://iptc.org/std/nar/2006-10-01/

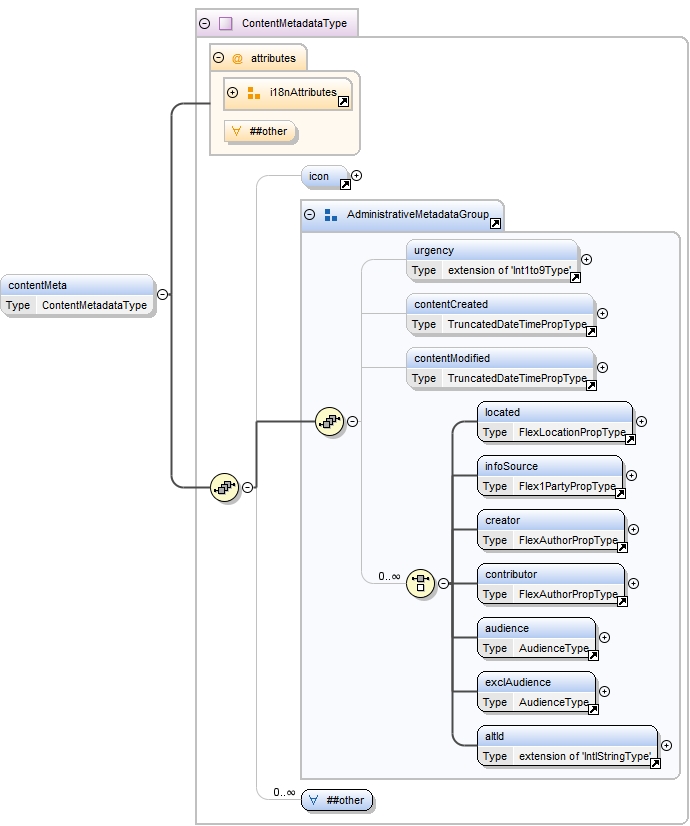

Diagram
Diagram ConceptItem0.tmp#id22 ConceptItem0.tmp#id192 ConceptItem0.tmp#id194 ConceptItem0.tmp#id196 ConceptItem0.tmp#id197 ConceptItem0.tmp#id198 ConceptItem0.tmp#id199 ConceptItem0.tmp#id202 ConceptItem0.tmp#id206 ConceptItem0.tmp#id207 ConceptItem0.tmp#id210 ConceptItem0.tmp#id211 ConceptItem0.tmp#id193 ConceptItem0.tmp#id191
Type ContentMetadataType
Properties
content: complex
minOccurs: 0
Model icon{0,1} , urgency{0,1} , contentCreated{0,1} , contentModified{0,1} , (located | infoSource | creator | contributor | audience | exclAudience | altId) , ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children altId, audience, contentCreated, contentModified, contributor, creator, exclAudience, icon, infoSource, located, urgency
Instance

<contentMeta dir="" xml:lang="">
  <icon contenttype="" creator="" format="" href="" id="" modified="" residref="" size="" version="">{0,1}</icon>
</contentMeta>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<xs:element name="contentMeta" type="ContentMetadataType" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/EventsML-G2_1.1/1.1/specification/EventsML-G2_1.1-spec-ConceptItem-Power.xsd
Element conceptItem/concept
Namespace http://iptc.org/std/nar/2006-10-01/

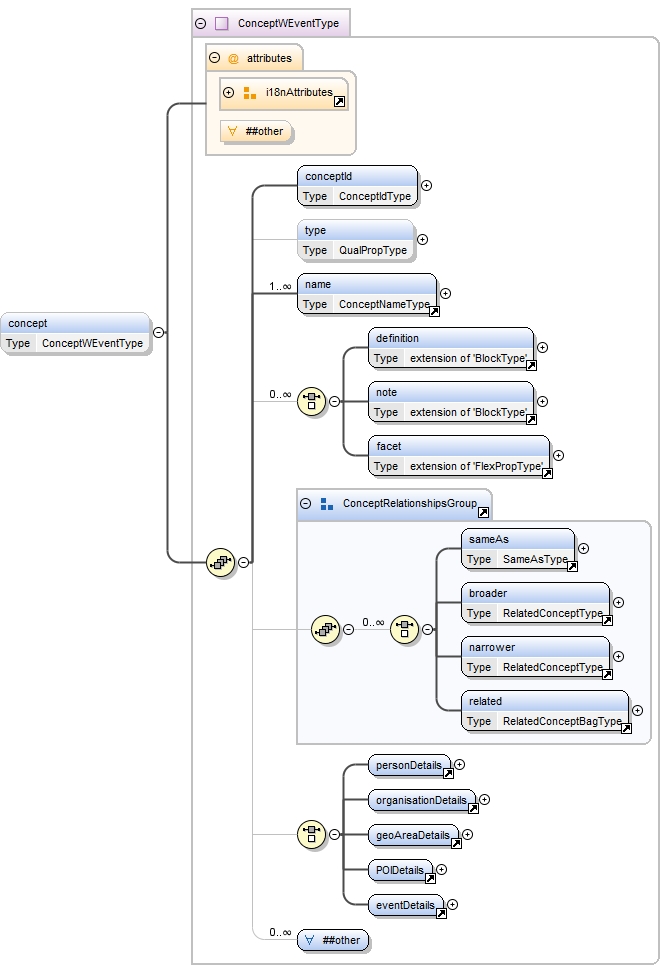

Diagram
Diagram ConceptItem0.tmp#id22 ConceptItem2.tmp#id219 ConceptItem2.tmp#id224 ConceptItem0.tmp#id56 ConceptItem0.tmp#id64 ConceptItem0.tmp#id69 ConceptItem0.tmp#id70 ConceptItem0.tmp#id74 ConceptItem0.tmp#id76 ConceptItem0.tmp#id80 ConceptItem0.tmp#id81 ConceptItem0.tmp#id73 ConceptItem0.tmp#id87 ConceptItem0.tmp#id95 ConceptItem0.tmp#id100 ConceptItem0.tmp#id107 ConceptItem2.tmp#id225 ConceptItem2.tmp#id218
Type ConceptWEventType
Properties
content: complex
minOccurs: 0
Model conceptId , type{0,1} , name+ , (definition | note | facet) , (sameAs | broader | narrower | related) , (personDetails | organisationDetails | geoAreaDetails | POIDetails | eventDetails) , ANY element from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
Children POIDetails, broader, conceptId, definition, eventDetails, facet, geoAreaDetails, name, narrower, note, organisationDetails, personDetails, related, sameAs, type
Instance

<concept dir="" xml:lang="">
  <conceptId created="" qcode="" retired="">{1,1}</conceptId>
  <type creator="" dir="" id="" xml:lang="" modified="" qcode="">{0,1}</type>
  <name creator="" dir="" id="" xml:lang="" modified="" part="" role="" validfrom="" validto="">{1,unbounded}</name>
</concept>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from ANY namespace OTHER than 'http://iptc.org/std/nar/2006-10-01/'
dir restriction of xs:string optional
The directionality of textual content.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.
Source

<xs:element name="concept" type="ConceptWEventType" minOccurs="0"/>
Schema location file:/C:/Users/mihai/Desktop/EventsML-G2_1.1/1.1/specification/EventsML-G2_1.1-spec-ConceptItem-Power.xsd
